sales@gohecho.cnDomestic Plastic Optical Fiber Cable Made by Hecho
Various model for different applications
Imported fiber core, high transmission rate
Fiber cores is soft, can be bent, extended into a small space
Environmental protection, non-toxic, non-metallic, recyclable

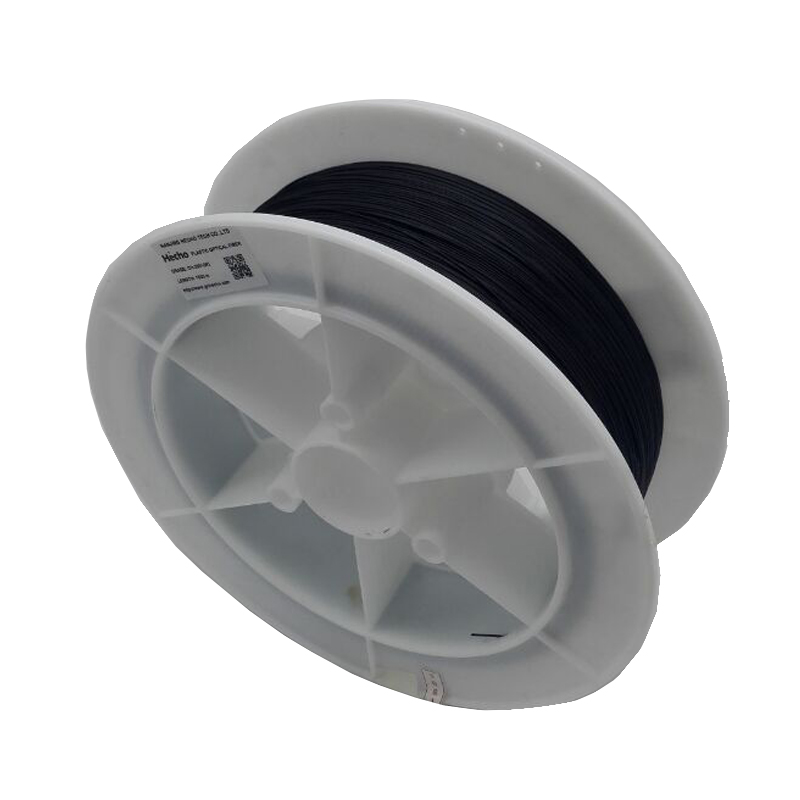

Product Item: Self-Coated HECHO Plastic Optical Fiber Cable
Model | Core Dia./QTY | O.D. | Packing | Outter Materials | Loss (dB/km) |
CH1001 | 0.25mm×1 | 1.0±0.05 | 1000 | PE | 700 |
CH2001(w) | 0.5mm×1 | 1.0±0.05 | 1000 | PE | 210 |
CH2001-1.3 | 0.5mm×1 | 1.3±0.05 | 1000 | PE | 210 |
CH3001-1.3 | 0.75mm×1 | 1.3±0.05 | 1000 | PE | 200 |
CH3001-2.2 | 0.75mm×1 | 2.2±0.07 | 1000 | PE | 200 |
CH4001 | 1.0mm×1 | 2.2±0.07 | 1500 | PE | 190 |
CH4002 | 1.0mm×2 | 2.2×4.3±0.1 | 500 | PE | 190 |
CH6001 | 1.5mm×1 | 3.0±0.15 | 700 | PE | 190 |
CH6001-2.2 | 1.5mm×1 | 2.2±0.07 | 700 | PE | 190 |
CH4001-4.0 | 1.0mm×1 | 4.0±0.1 | 200 | PE/PVC | 190 |
CH2001-2.2 | 0.5mm×1 | 2.2±0.07 | 1000 | PE | 210 |
|
|
|
|
|
|
Product Item: Self-Coated HECHO Plastic Optical Fiber Cable
Our lighting grade PMMA Plastic Optical Fiber, from bare fiber to single-core optical fiber cable, from multi-core to stranded fiber optic cable, a free combination of different products to meet a variety of fiber optic lighting applications.
LED light source through the plastic optical fiber, can be directed to any position or direction, we can dot in the fiber side, leakage spot, a number of light leakage fiber optic fiber curtain effect can be formed, can also be combined into a variety of fiber optic or fiber optic lights Hotels, clubs, conference rooms, nightclubs, bars, KTV, cultural relics lighting, jewelry lighting, solar light guide, and so on, can be used in industrial transmission, optical lighting, reception hall.
