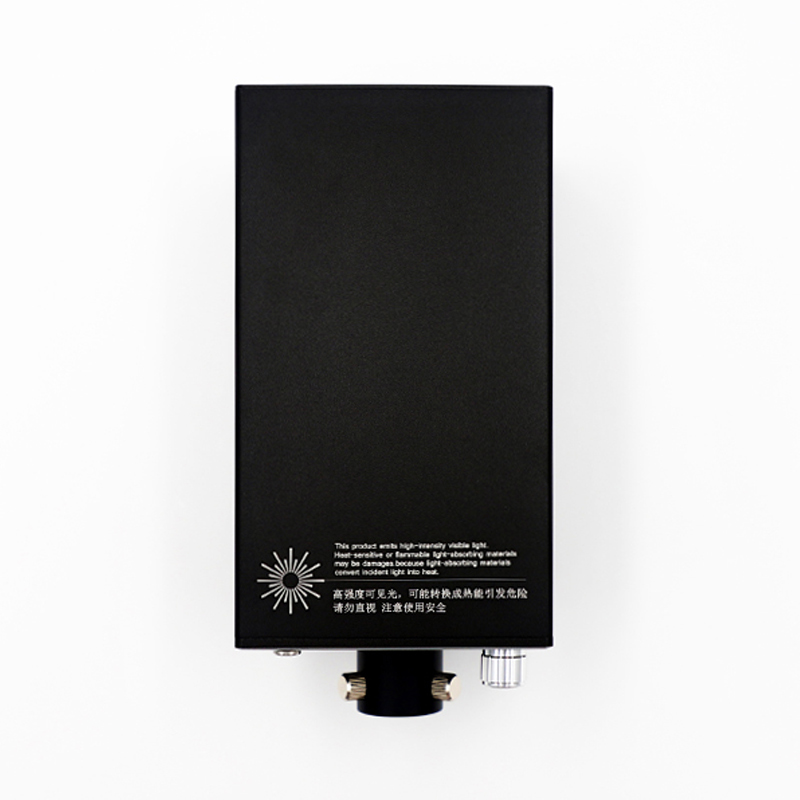

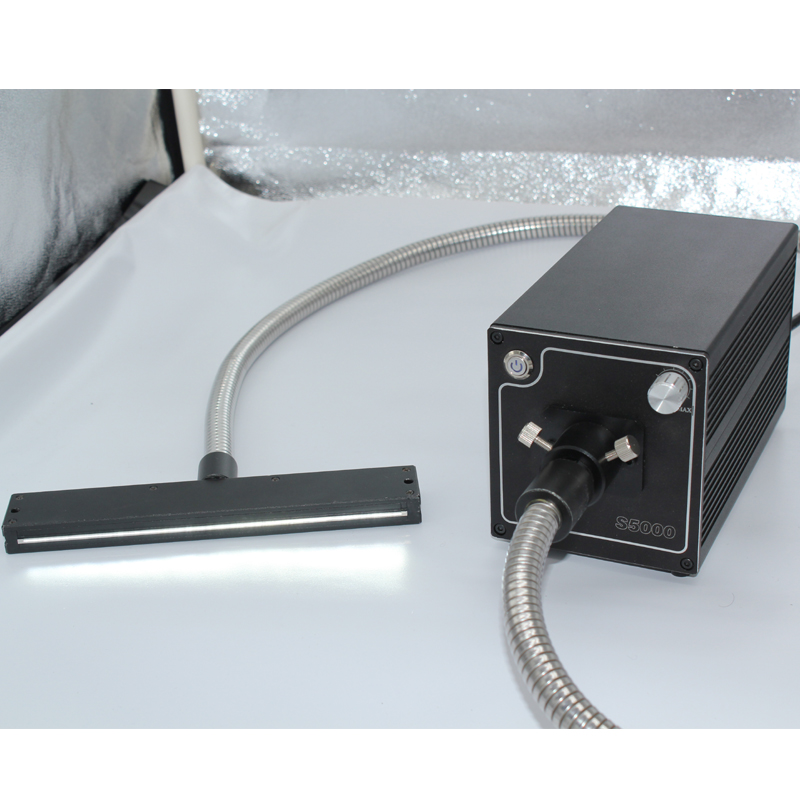

60W LED Light Source S5000
Home

Fiber Optic Illuminator

60W LED Light Source S5000

60W LED Light Source S5000


· New LED light source for Medical and Industrial application

· 60W high power LED chips

· Supporting high speed trigger, 1 um response time

· Color temperature 6500K (CRI 70) and 5400K (CRI 90) for choose

· Instead of 250W metal halide light source

· Red light, Blue light, Green light is available for customized





Product Item: Fiber Optic LED Light Source S5000



Item

65W LED Cold Light Source

Model

S5000

Drive model

Constant-current system

Power supply

AC90-250V power adapterDC24V/5A

OR 24VDC electrical source

Power consumption

65W Max (Not including AC-DC)

Brightness control

Potentiometer Manually adjusted / Analog control DC 0-5V / PWM 200Hz-100KHz 5V

Center luminance *

572,000lx

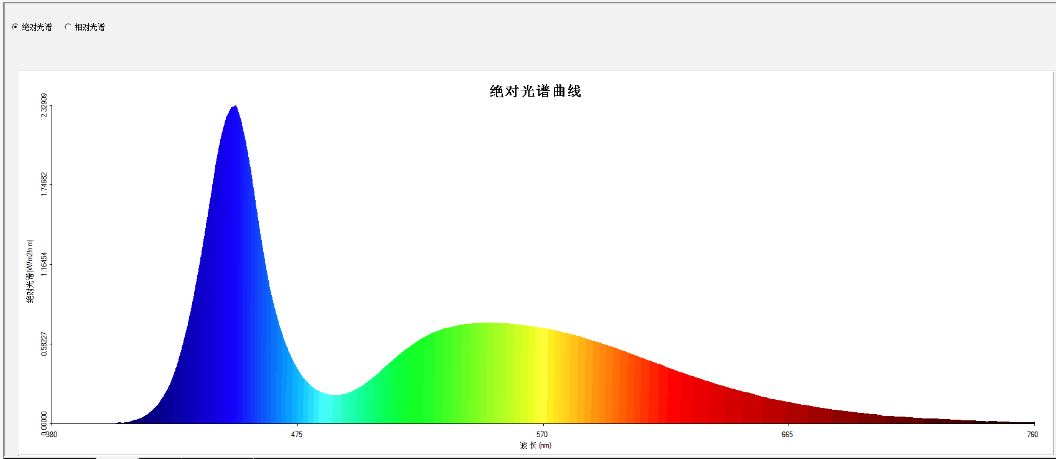

Color temperature

6500K

Color Rendering Index

Ra70

LED life

Normal life > 30,000h

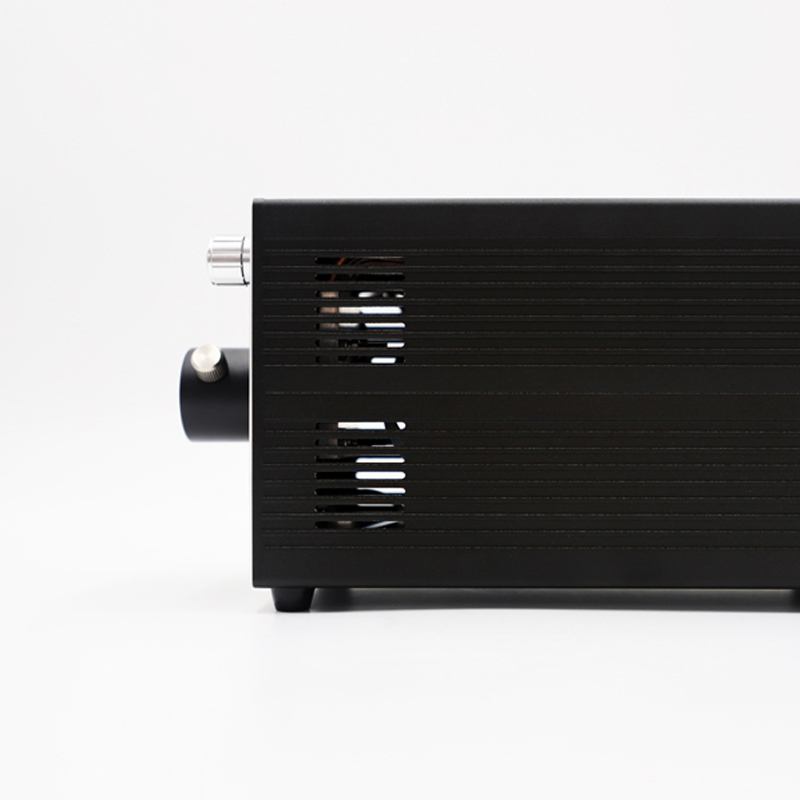

Cooling

The heat pipe radiator + Silent Fan

Working Temperature

-20~ +50°C/20%-80%RH (No condensation)

Installation

Fine Screw Locking

Net weight

2.2kg

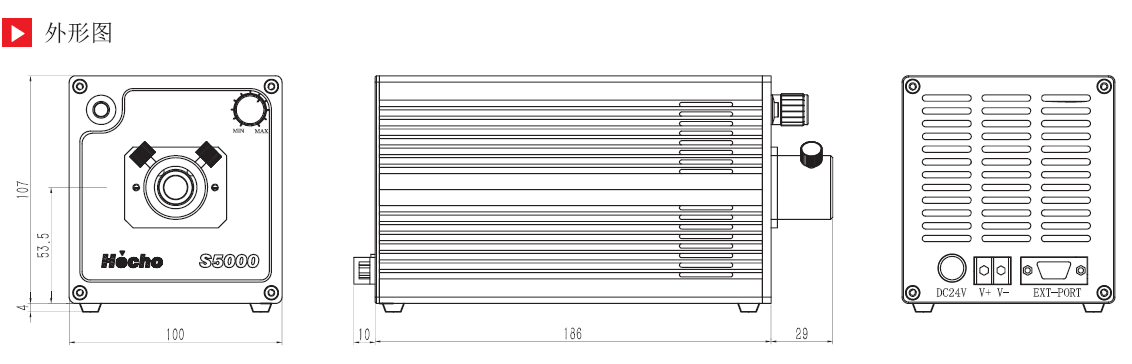

Dimension

225(L)*100(W)*114(H)mm


The average luminance is at 50mm from the fiber output at maximum volume when a Hecho standard light guide (GOFC-S8H-1000-F1) is attached.

Product Item: Fiber Optic LED Light Source S5000



The highest brightness 60W LED Light Source in the field, to achieve more than 250W metal halide light source light output. Equipped with 5u response time high-speed trigger function, providing high brightness lighting, color temperature 6500K and 5400K optional.



 Super brightness, about 5 times than S3000 model

 3 model of brightness control

 30000 hours LED life

 Supporting high speed trigger, 5 um response time


LED Light Source



Product Item: Fiber Optic LED Light Source S5000

LED Light Source

Leave Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
submit
Related Products

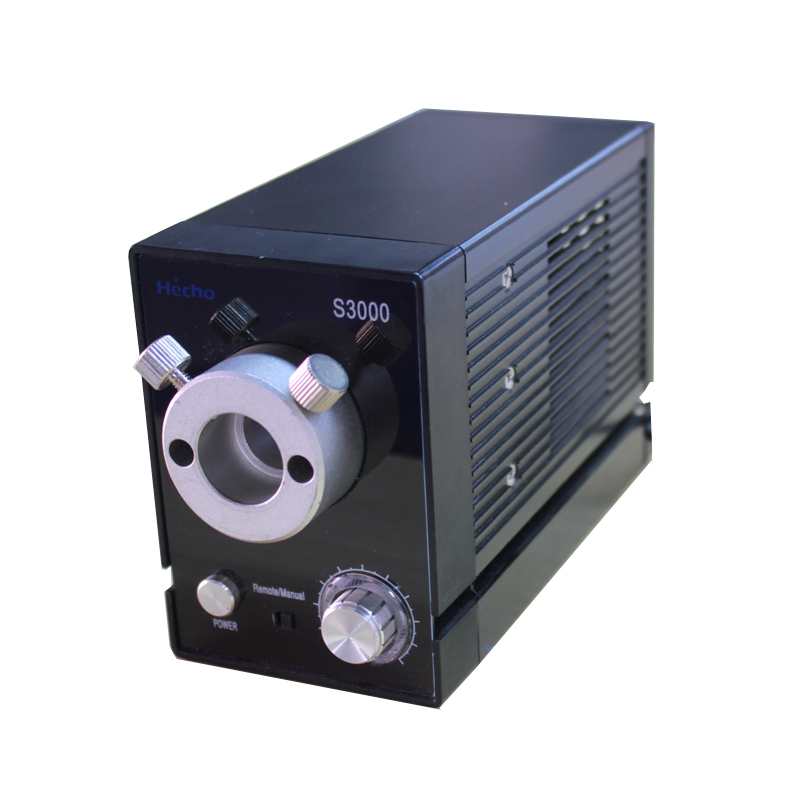

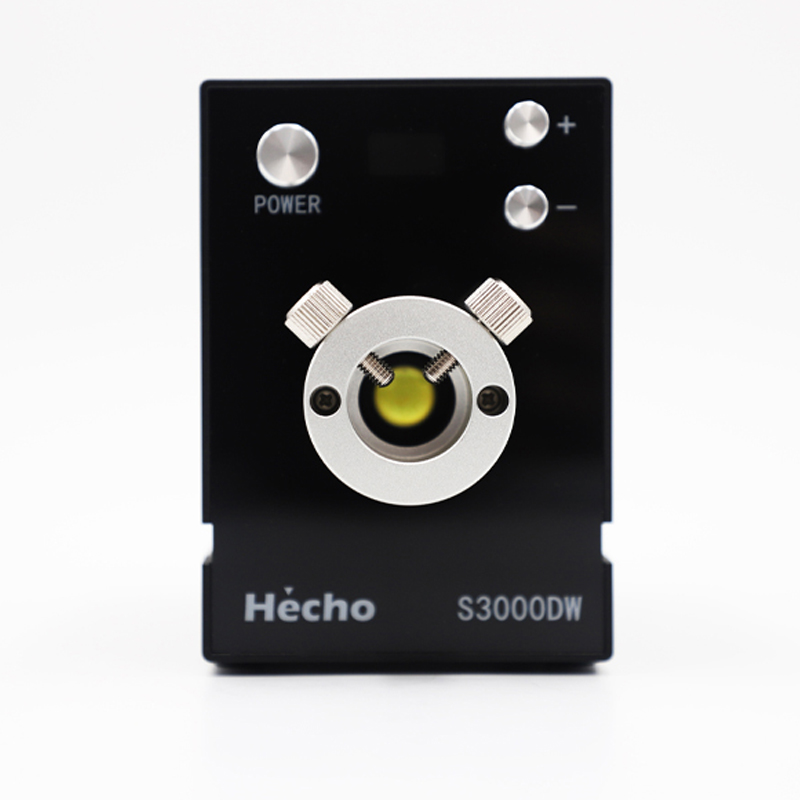

LED Fiber Optic Illuminator S3000
LED Fiber Optic Illuminator S3000

High brightness LED and unique condenser system, the overall cooling structure design, S3000 LED cold light source to achieve high power output under high brightness and long life. Item NO:S3000 Color:Black Min order:1 Payment:T/T ShippingPort:Nanjing Original Region:China Lead Time:30 days

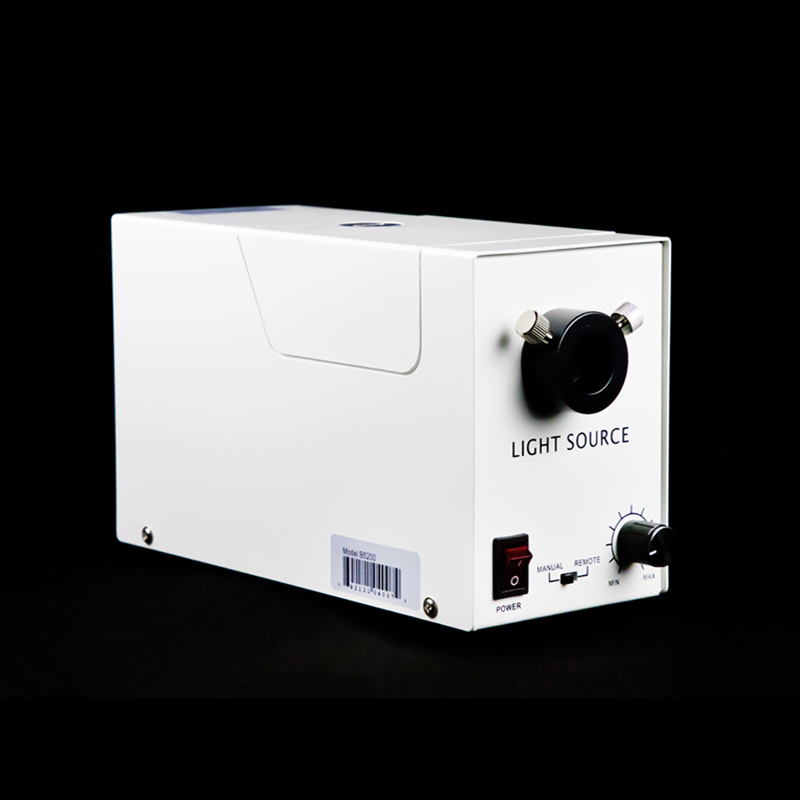

Halogen Light Source 100W/150W
Halogen Light Source 100W/150W

H series halogen lamp cold light source using a wide voltage input slow start design, effective protection of the lamp and the motherboard; drawer for lights, high efficiency cooling channel to ensure the stable operation of the cold light source. Color:White Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks

Medical Fiber Optic Light Module
Medical Fiber Optic Light Module S5000M

The highest brightness LED cold light source in the field, to achieve more than 250W metal halide light source light output. Equipped with 5u response time high-speed trigger function, providing high brightness lighting, color temperature 6500K and 5400K optional. Min order:1 Payment:T/T, Western Union ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 3 weeks

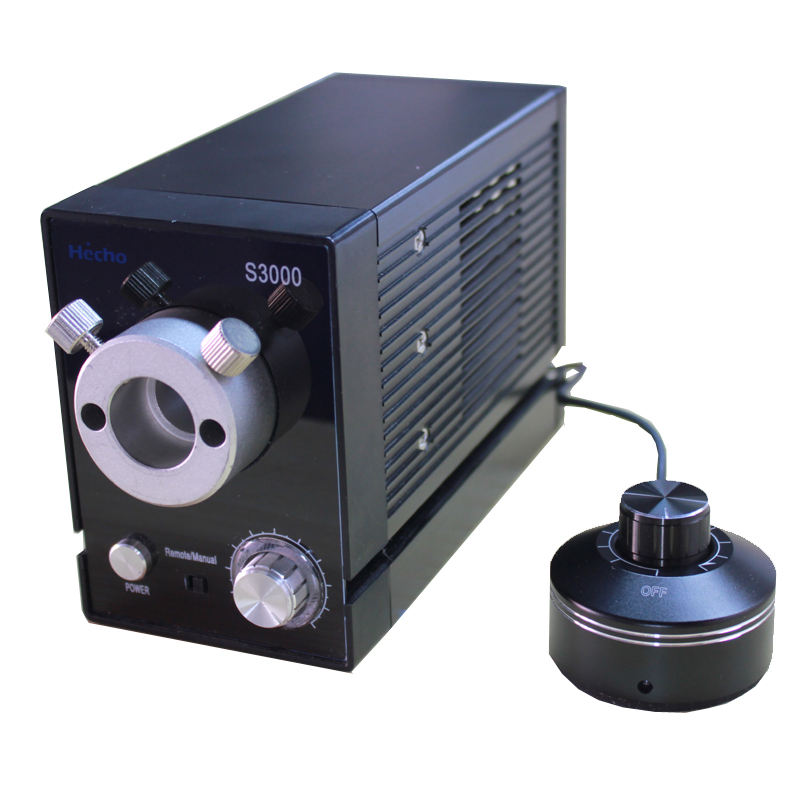

Fiber Optic LED Light Source S3000 With Outer Controller
Fiber Optic LED Light Source S3000 With Outer Controller

High brightness LED and unique condenser system, the overall cooling structure design, S3000 LED cold light source to achieve high power output under high brightness and long life. Item NO:S3000 Color:Black Min order:1 Payment:T/T ShippingPort:Nanjing Original Region:China Lead Time:30 days

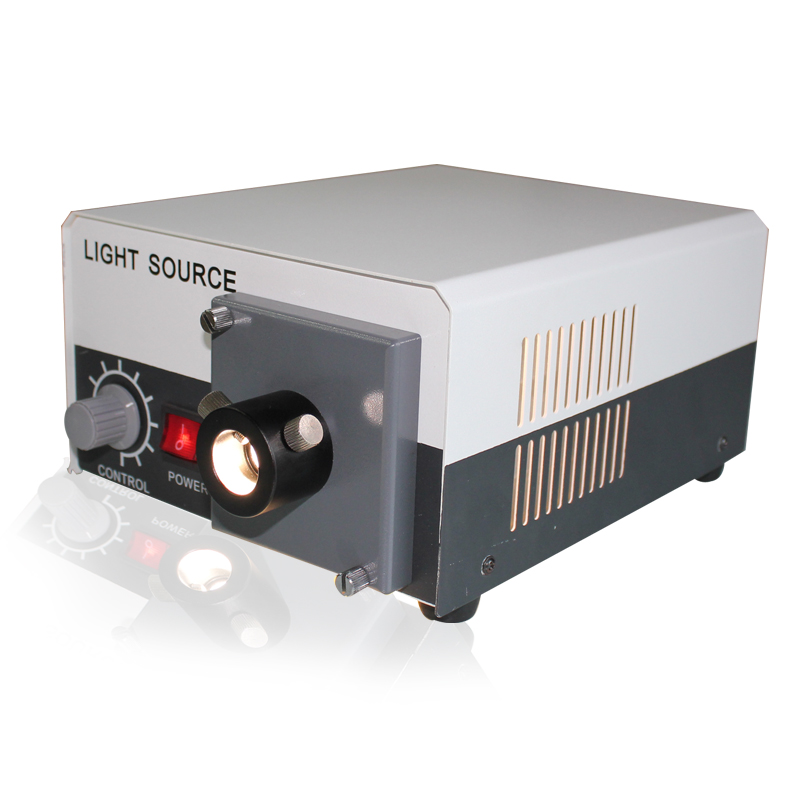

150W Halogen Fiber Optic Illuminator
