LED Fiber Optic Illuminator S5000D
Home

Fiber Optic Illuminator

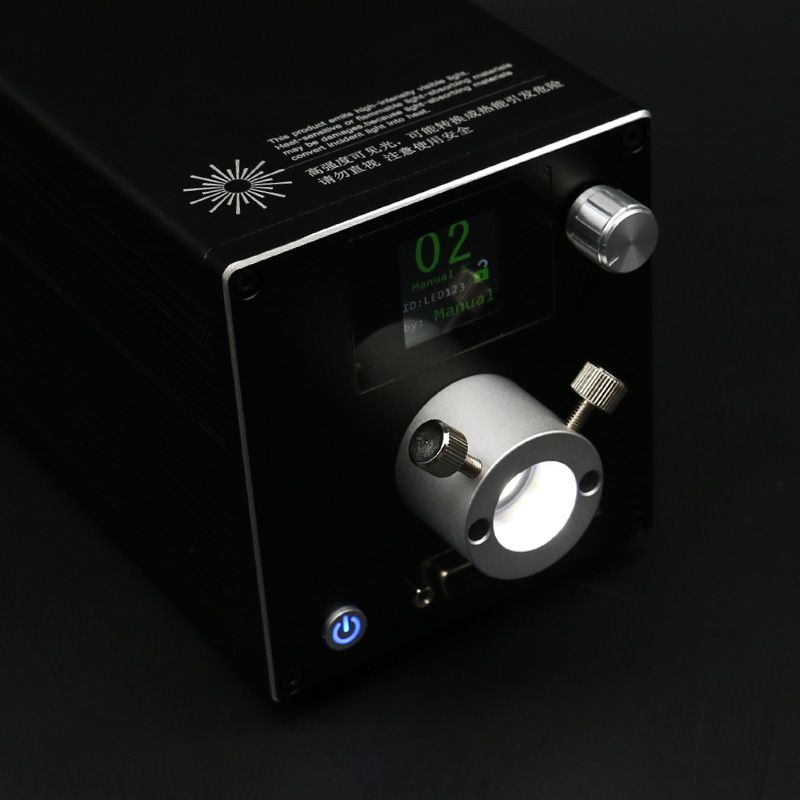

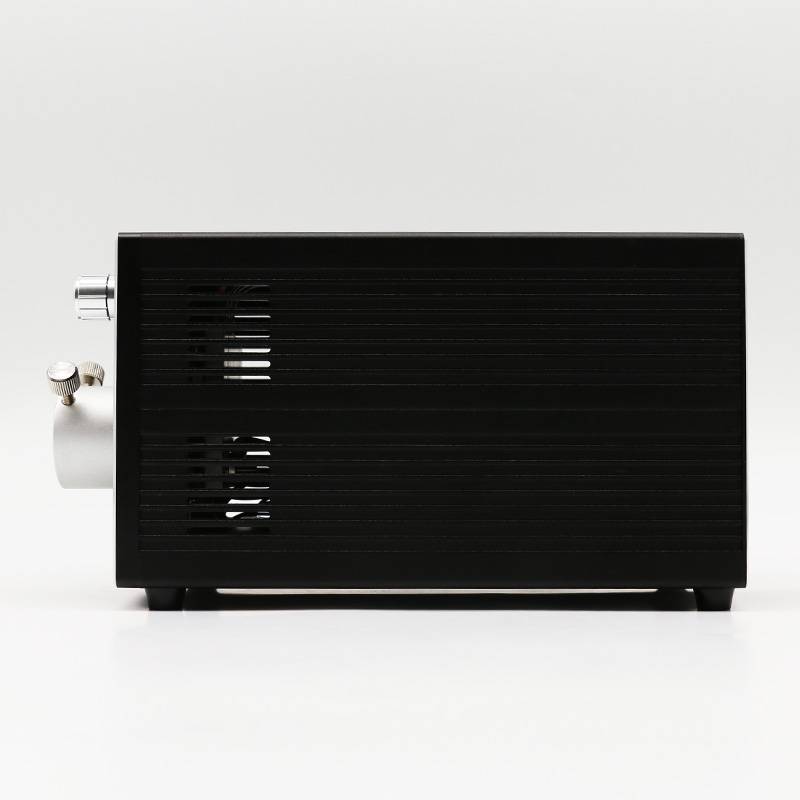

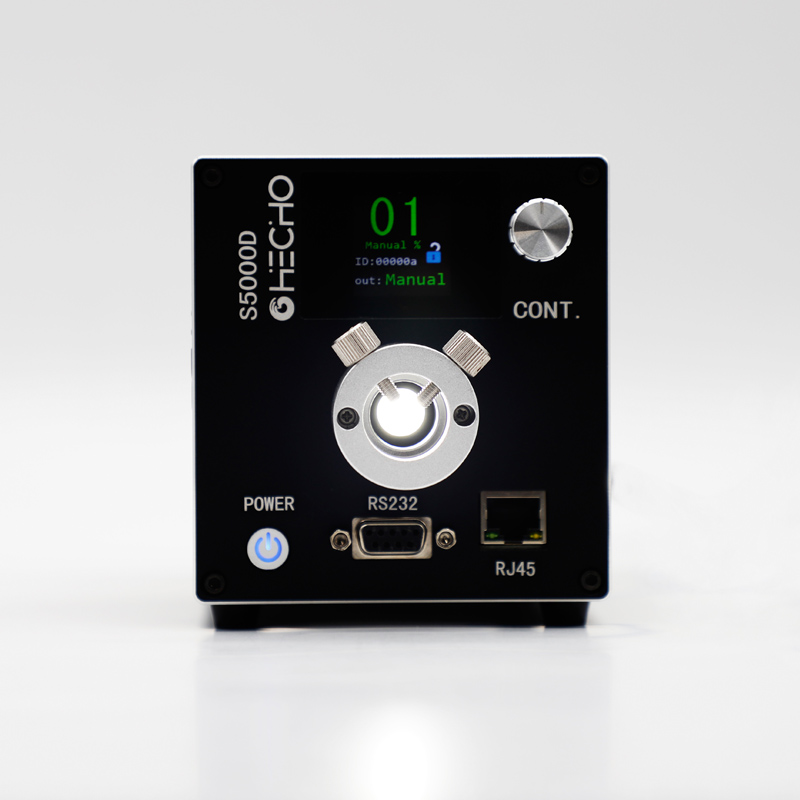

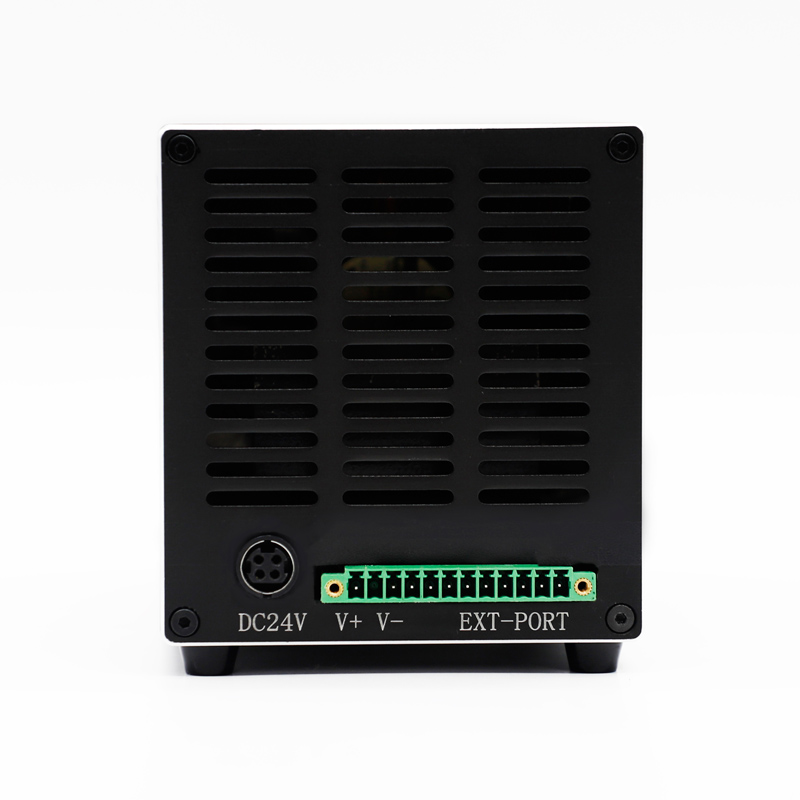

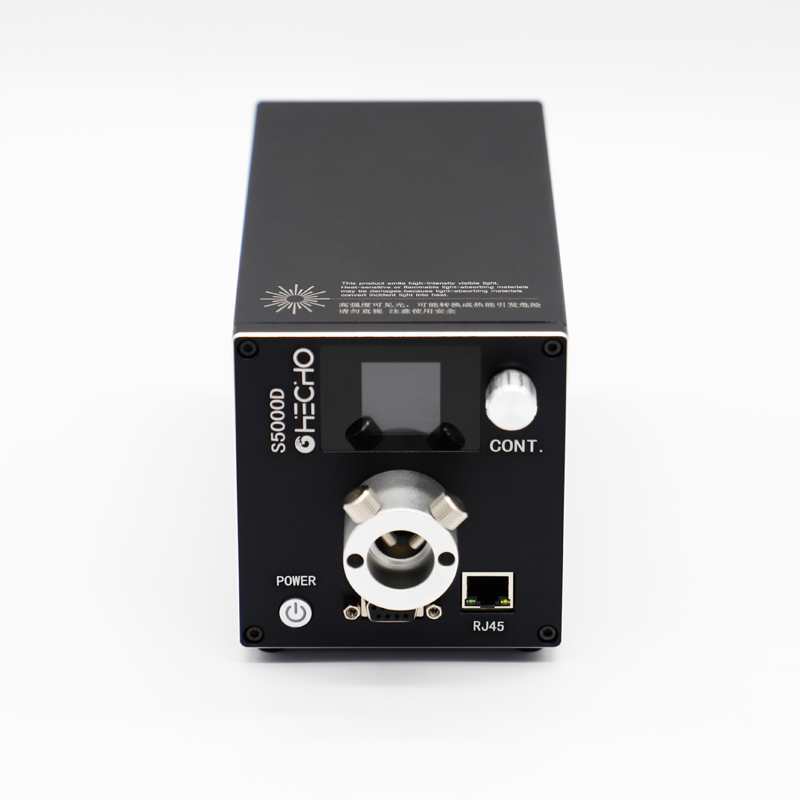

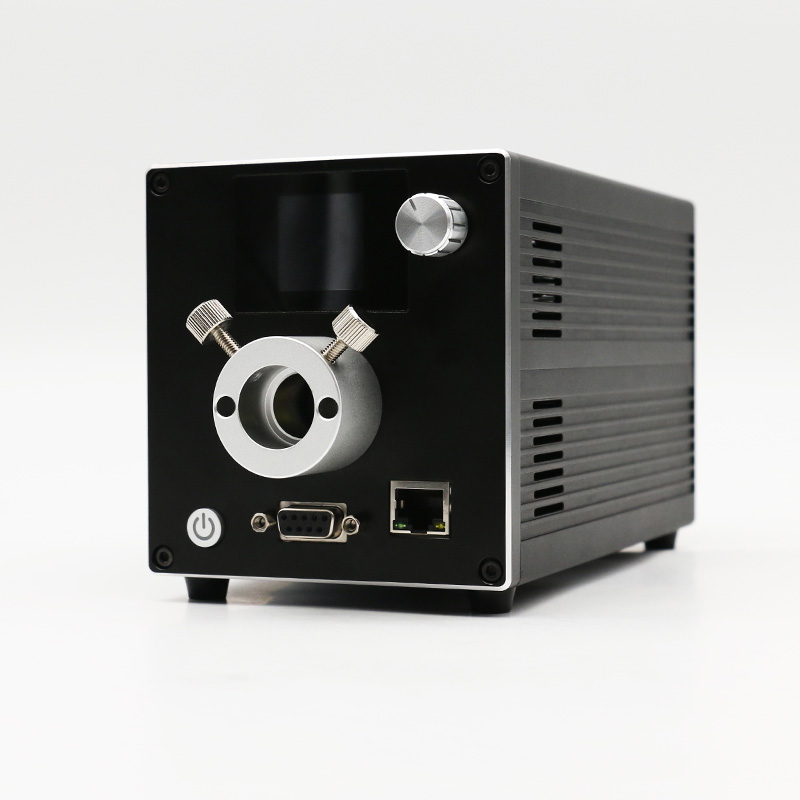

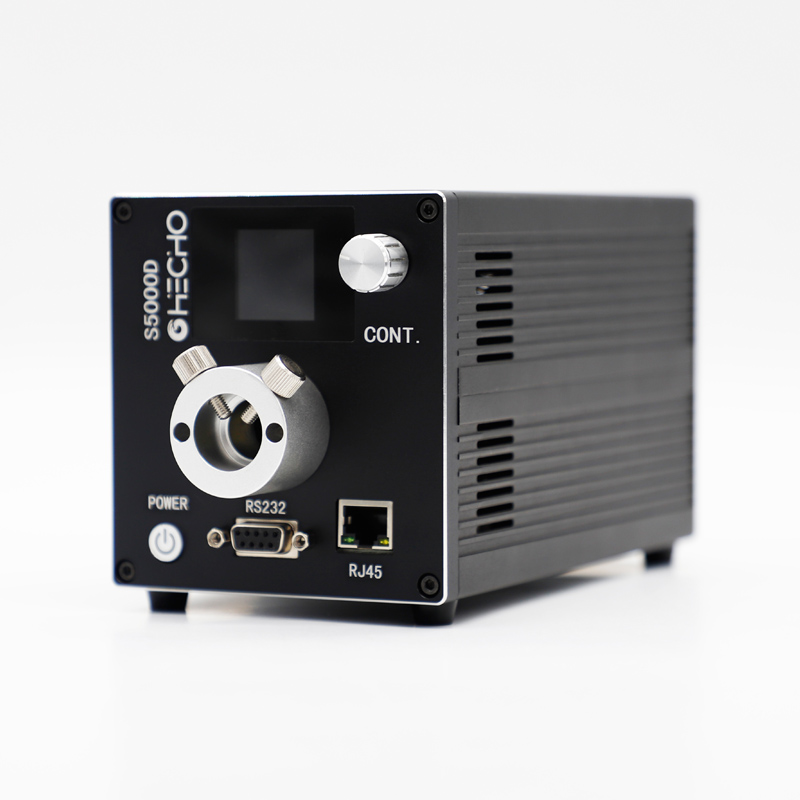

LED Fiber Optic Illuminator S5000D

LED Fiber Optic Illuminator S5000D

> AC / DC power supply
Digital control
Secondary current protection
Continuous current regulation

> RS-232 Function

Product Name: LED Numerical Control Cold Light Source

Model: S5000D

Drive Mode: Continuous current regulation, 2-level current protection, maximum voltage protection for LEDs

Input Voltage: Power adapter (DC 24V > 1A) or 24V DC power supply

Power Consumption: <65 W (excluding AC-DC)

Adjustment Modes: Panel manual adjustment, RS232/RJ45 command (LCD display 0-100%), 0-5V voltage signal, external 10K potentiometer, 5V level PWM signal

Constant Current Output: Continuously adjustable from 0% to 100%

External Trigger: 100KHz Max, signal width > 1us, extremely low-delay response < 100ns

LED Power: MAX: 50W

Spot Diameter: Φ10 mm

*Average Illuminance: MAX: 800,000 lx

Color Temperature: 6500 K

Color Rendering Index (CRI): Ra > 70

LED Lifespan: Normal lifespan > 30,000 h

Cooling Method: Strong fan cooling

Operating Temperature: -20 to +40℃ / 20% - 80% RH (non-condensing)

Over-temperature Protection: 65℃ (Restarting fallback temperature: 40℃)

Net Weight: 2.2 kg

Dimensions: 218 * 100 * 114 mm (with rubber foot pads)



*The average illuminance is measured at a distance of 50mm from the fiber optic output end using Hecho standard fiber optic GOFC-S8H-1000-F1 and the maximum amount of light.

> AC / DC power supply
Digital control
Secondary current protection
Continuous current regulation

> RS-232 Function

> AC / DC power supply
Digital control
Secondary current protection
Continuous current regulation

> RS-232 Function
