Medical Fiber Optic Light Module S5000M
Home

Fiber Optic Illuminator

Medical Fiber Optic Light Module S5000M

Medical Fiber Optic Light Module S5000M


· New LED light source for Medical and Industrial application

· Supporting high speed trigger, 5 um response time

· Color temperature 6500K (CRI 70) and 5400K (CRI 90) for choose

· Instead of 250W Metal Halide Light Source

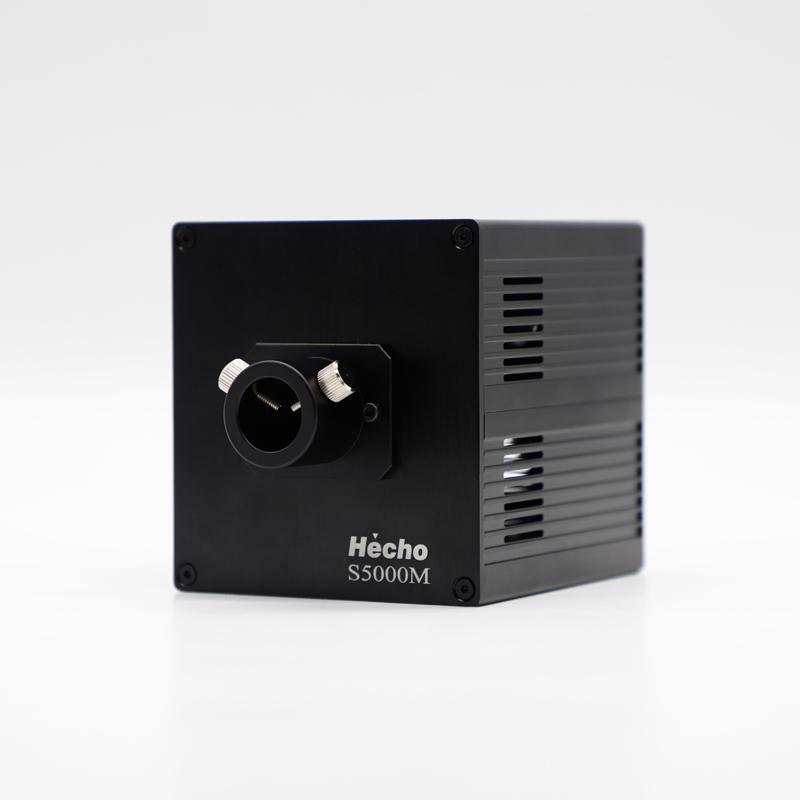

Product Item: Medical Fiber Optic Light Module S5000M



Item

High Power LED light source Module

Model

S5000M

Drive model

Constant-current system

Power supply

AC90-250V power adapterDC24V/5A

OR 24VDC electrical source

Power consumption

65W Max (Not including AC-DC)

Brightness control

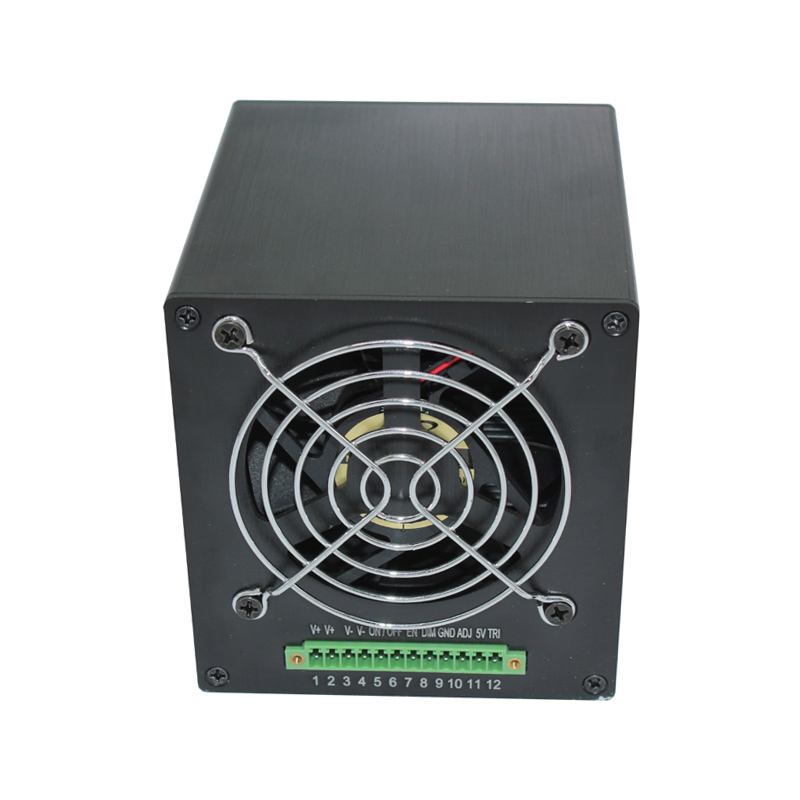

Potentiometer Manually adjusted / Analog control DC 0-5V / PWM 200Hz-100KHz 5V

Center luminance *

320,000lx

Color temperature

6500K

Color Rendering Index

Ra90

LED life

Normal life > 20,000h

Cooling

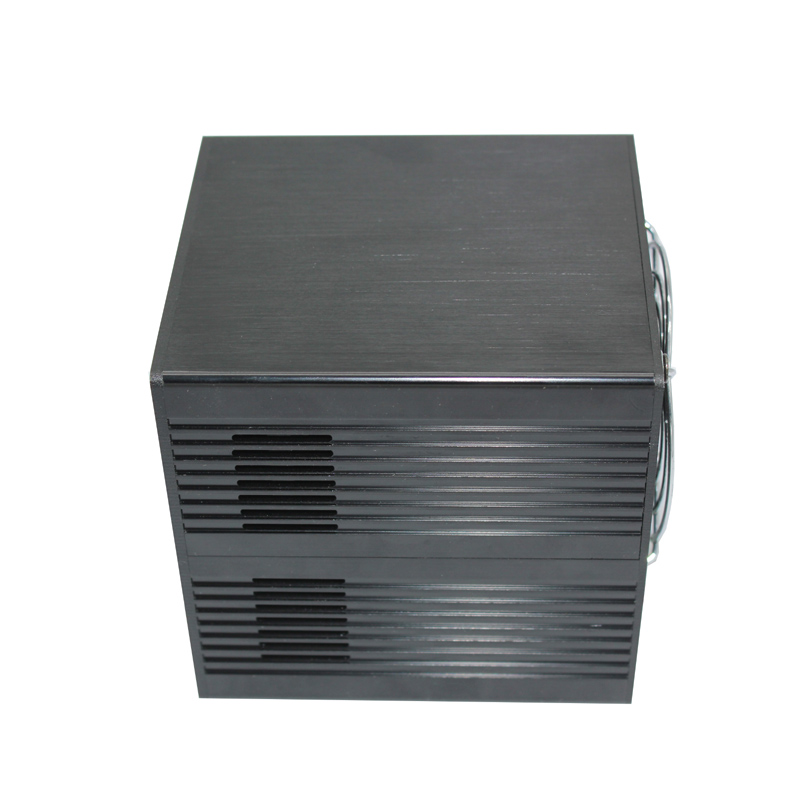

The heat pipe radiator + Silent Fan

Working Temperature

-20~ +50°C/20%-80%RH (No condensation)

Installation

Fine Screw Locking

Net weight

1.2kg

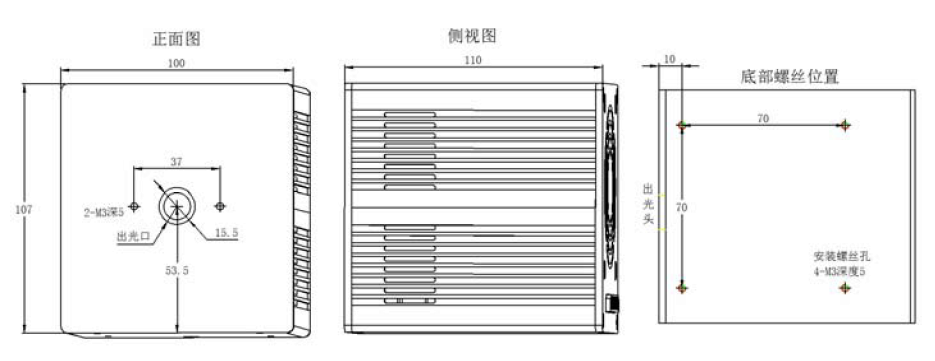

Dimension

107(H)*100(W)*114(L)mm

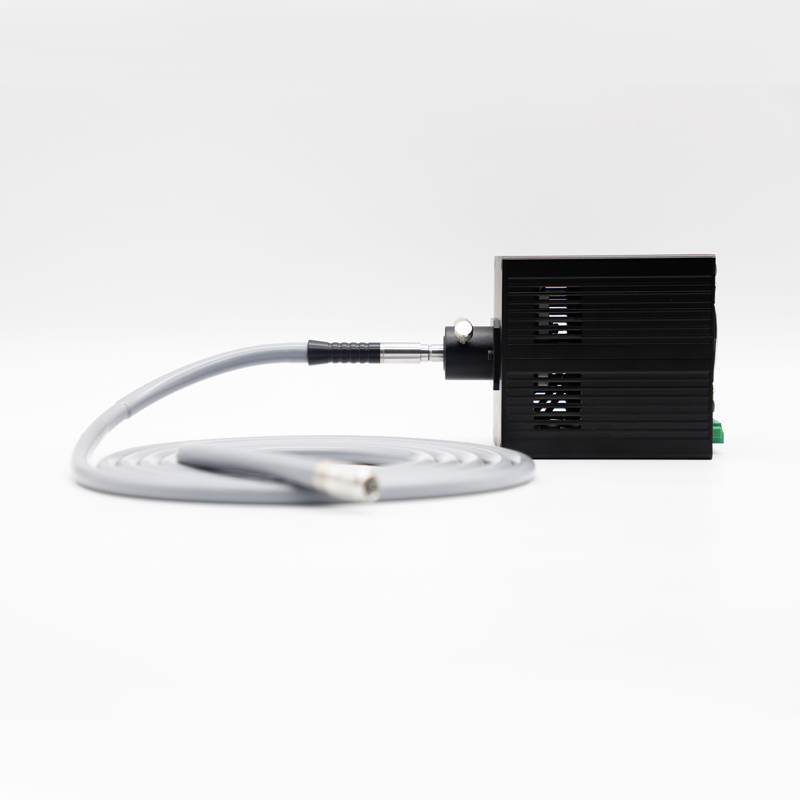

The average luminance is at 50mm from the fiber output at maximum volume when a Hecho standard light guide (GOFC-S8H-1000-F1) is attached.

Product Item: Medical Fiber Optic Light Module S5000M



The highest brightness65W LED cold light source Fiber Optic Led Light Source  in the field, to achieve more than 250W metal halide light source light output. Equipped with 5u response time high-speed trigger function, providing high brightness lighting, RA 90, color temperature 6500K and 5400K optional.



· Super brightness, about 5 times than S3000 model;

· 3 model of brightness control

· 30000 hours LED life

· Supporting high speed trigger, 5 um response time


Product Item: Medical Fiber Optic Light Module S5000M

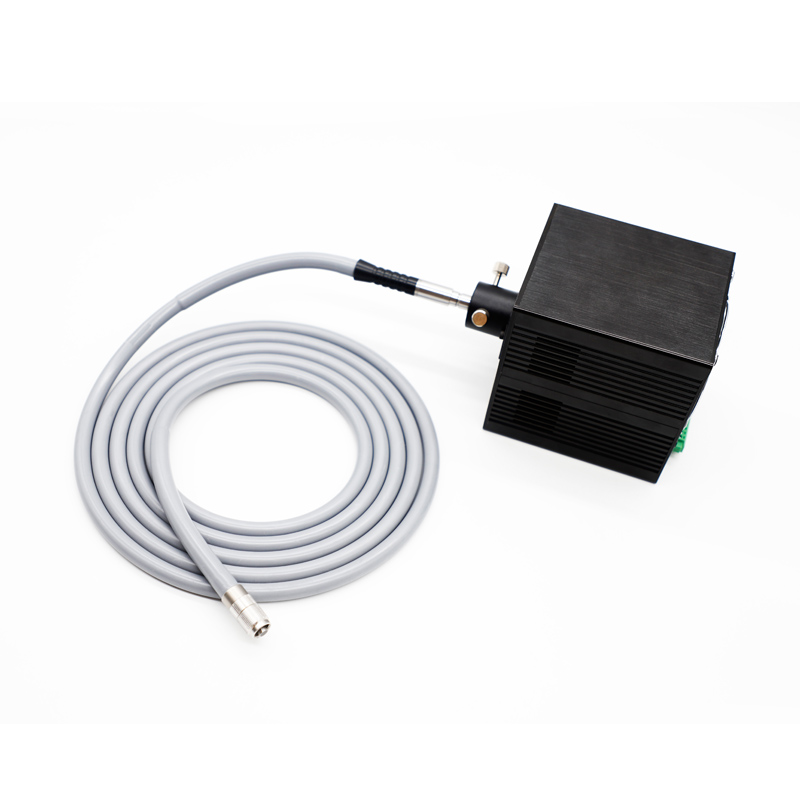

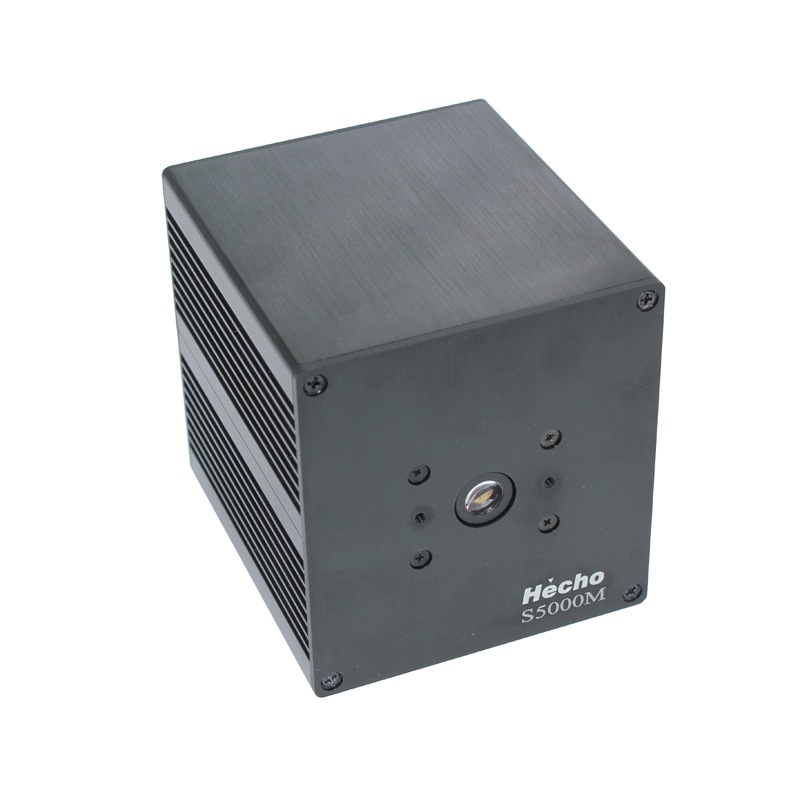

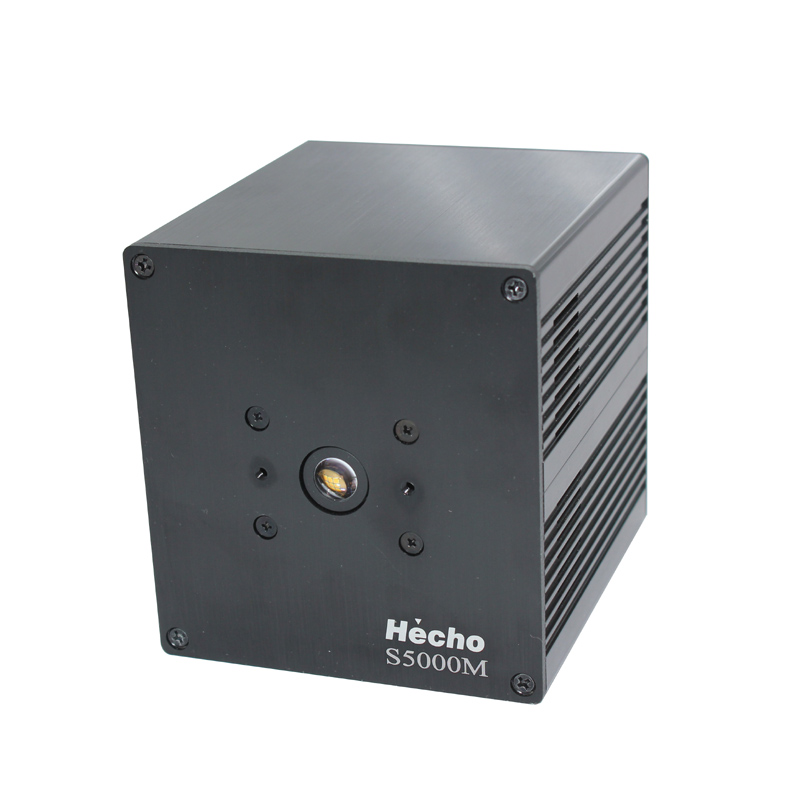

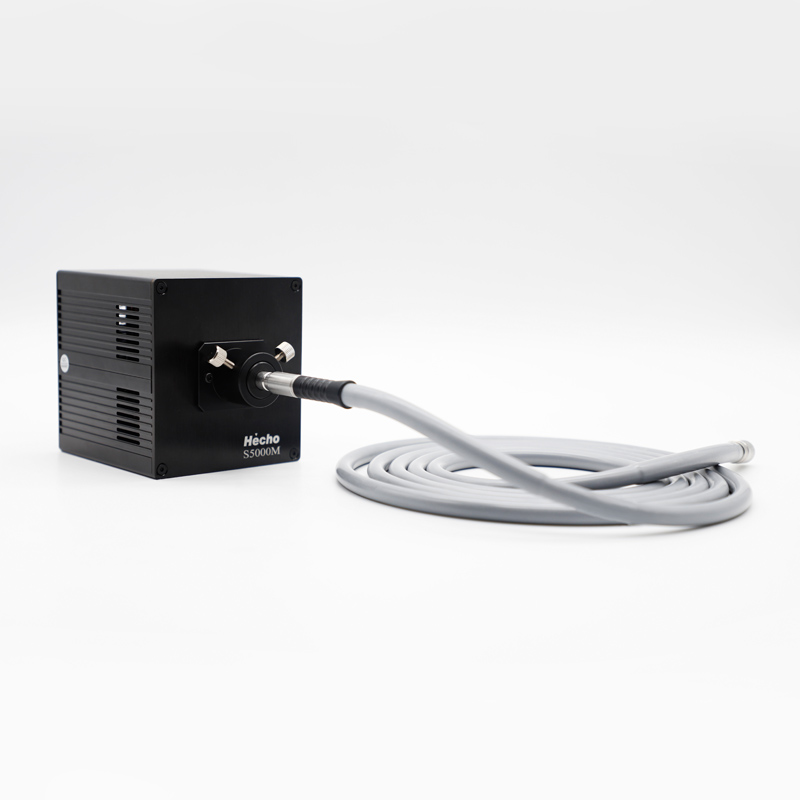

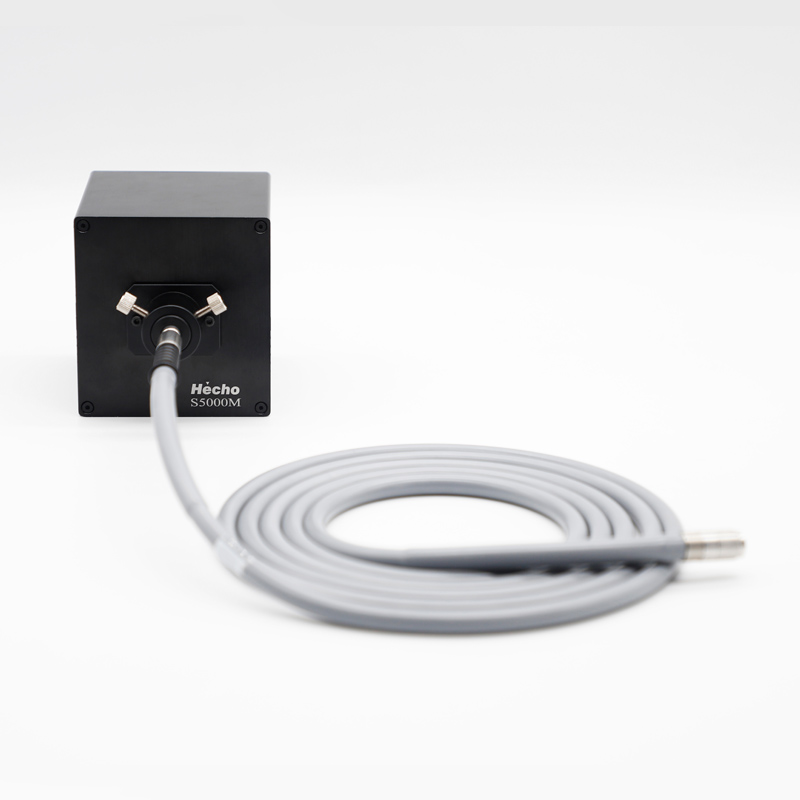

LED Fiber Optic Module S5000M
