Flexible Fiber Optic Light Guide
Home

Fiber Optic Bundle

Flexible Fiber Optic Light Guide

Flexible Fiber Optic Light Guide

· Free bending, flexible use
· A variety of HECHO standard sizes
· Standard input accepts HECHO LED and Halogen series light sources
· Custom configurations are available. Lead time is required.





/multimode-silica-fiber-bundle_p56.html

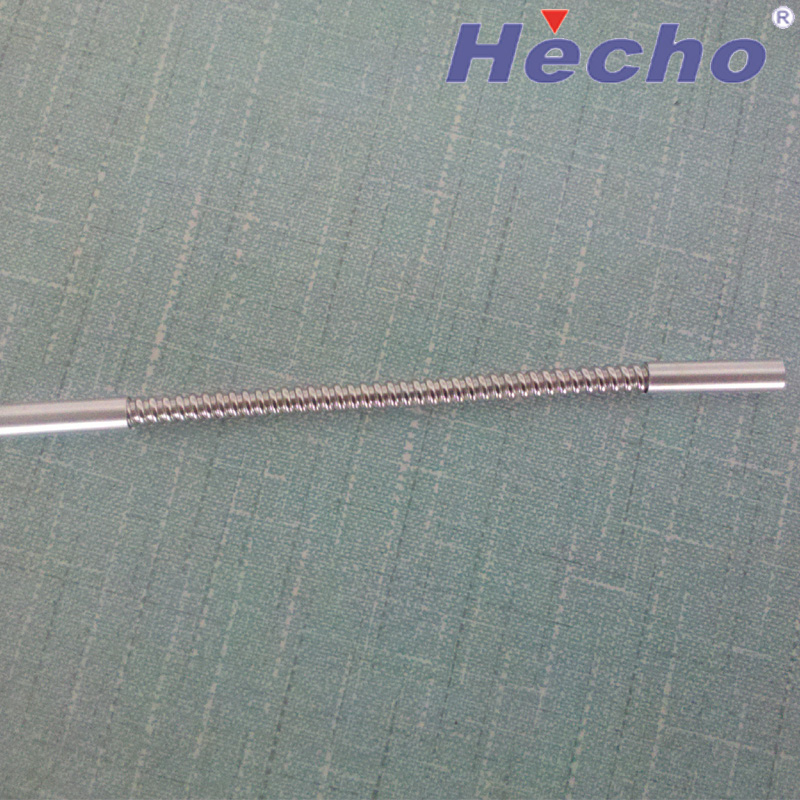

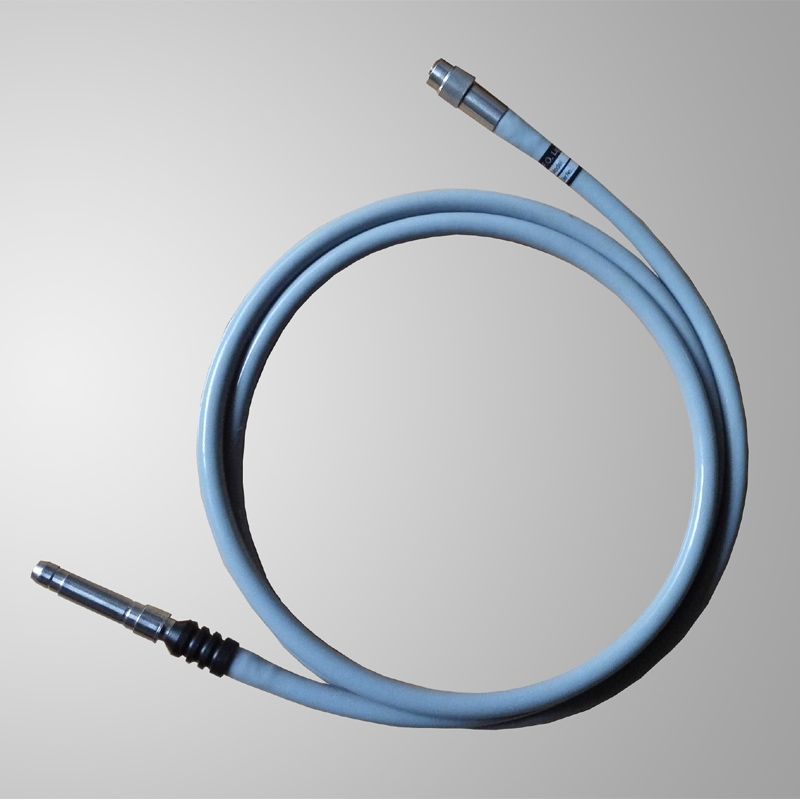

Product Item: Flexible Fiber Optic Light Guide

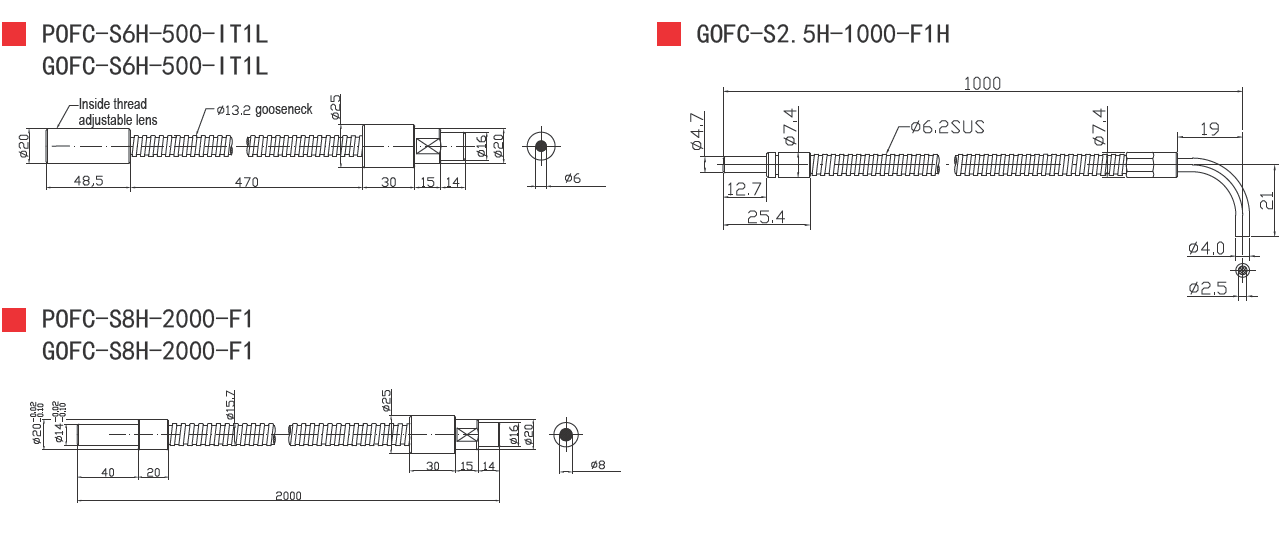

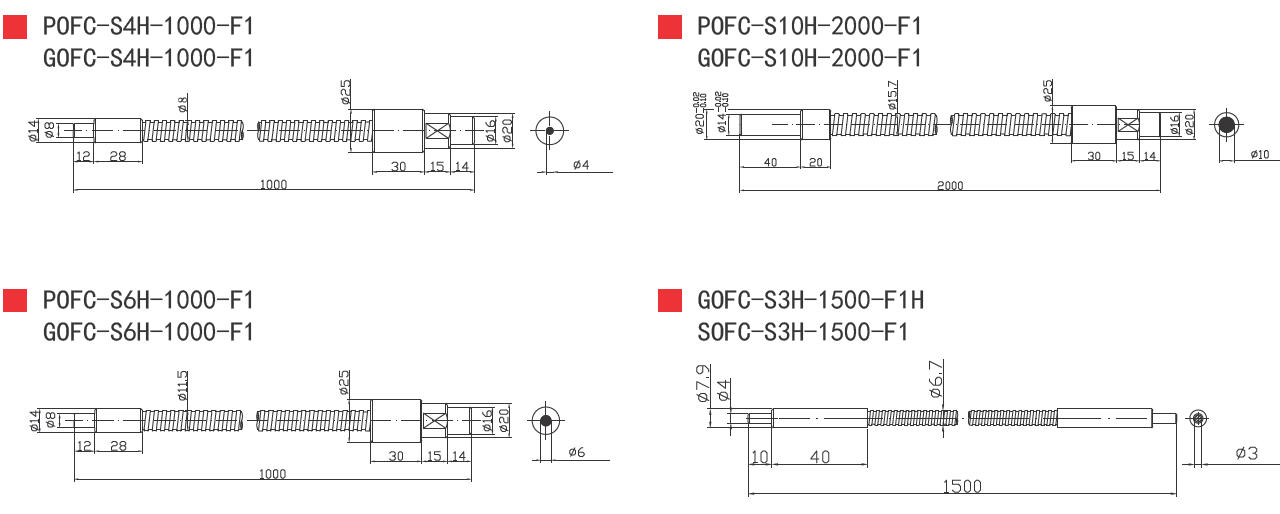

Model Core Dia. Fiber material Length Tubes Spectral range
POFC-S4H-1000-F1 4mm PMMA 1000mm Flexible SUS 380 ~ 780nm
GOFC-S4H-1000-F1 4mm GOF 1000mm Flexible SUS 400 ~ 1400nm
POFC-S6H-1000-F1 6mm PMMA 1000mm Flexible SUS 380 ~ 780nm
GOFC-S6H-1000-F1 6mm GOF 1000mm Flexible SUS 400 ~ 1400nm
POFC-S8H-2000-F1 8mm PMMA 2000mm Flexible SUS 380 ~ 780nm
GOFC-S8H-2000-F1 8mm GOF 2000mm Flexible SUS 400 ~ 1400nm
POFC-S10H-2000-F1 10mm PMMA 1000mm Flexible SUS 380 ~ 780nm
GOFC-S10H-2000-F1 10mm GOF 1000mm Flexible SUS 400 ~ 1400nm
GOFC-S3H-1500-F1 3mm GOF 1500mm Flexible SUS 400 ~ 1400nm
SOFC-S3H-1500-F1 3mm Silica fiber 1500mm Flexible SUS 200 ~ 1200nm
GOFC-S2.5H-1000-F1H 2.5mm GOF 1000mm Flexible SUS 400 ~ 1400nm



Other dimensions can be customized.



* GOFC series Compatiable with HECHO Fiber Optic Illuminators: LED light source: S3000/S5000; Halogen light source: H-100/H-150/B5100/B5200

* POFC series Compatiable with Hecho Fiber Optic Illuminators: LED light source: S3000; Halogen light source: H-100/H-150/B5100/B5200.

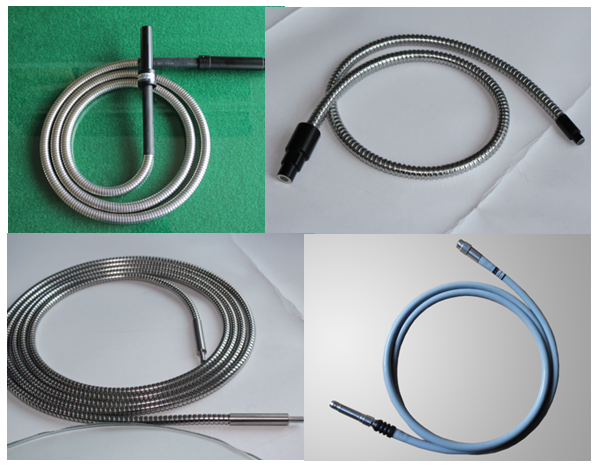

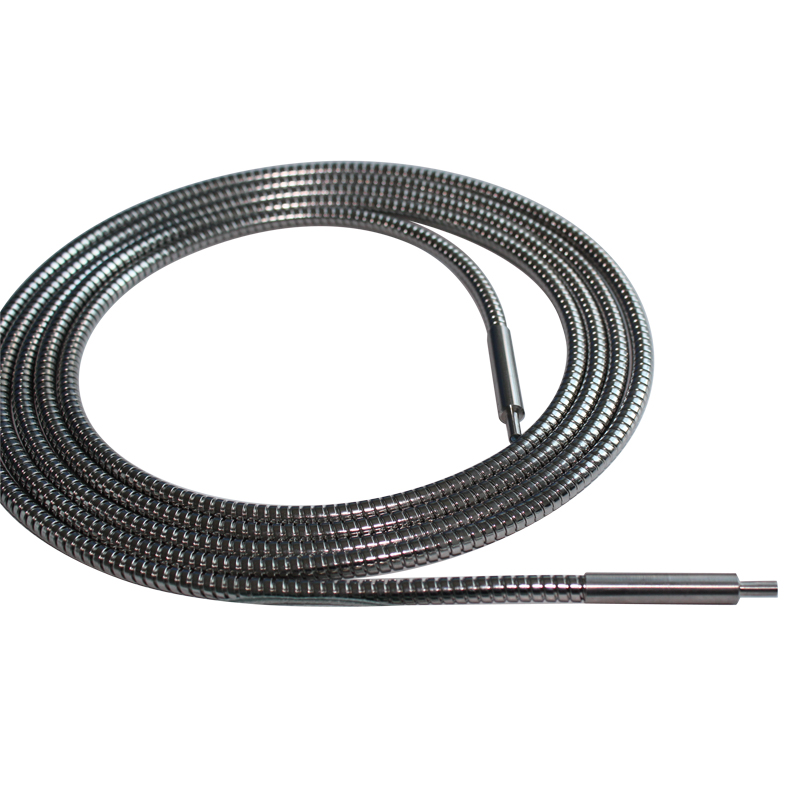

Product Item: Flexible Fiber Optic Light Guide



HECHO uses the imported high-transmittance Plastic Optical Fiber, Glass Fibers and Quartz fiber as the light guide material, when the need for narrow or specific occasions require high-intensity cold light or specific spectrum, the single Flexible Fiber Bundle can meet customer-specific demand.



Choose the different fiber materials against the spectrum range and demands. Plastic fiber optic with spectrum 380nm ~ 780nm, working temperature around 100 degree, Glass Optical fiber with spectrum 400 - 1400nm, long-term working temperature up to 350°; And quartz fiber can provide spectral range 190 ~ 2500nm.



According to customer requirements to provide OEM and ODM services, a variety of optional specifications, fiber optic protection tube can provide stainless steel hose, plastic coated stainless steel hose, metal hose can be shaped, plastic hose to meet the use of results.



Flexible Light Guide can be used in industrial automation, medical, optical and other industries. Such as Microscope lighting, Endoscopic lighting, Movable table lighting, etc.



Features:

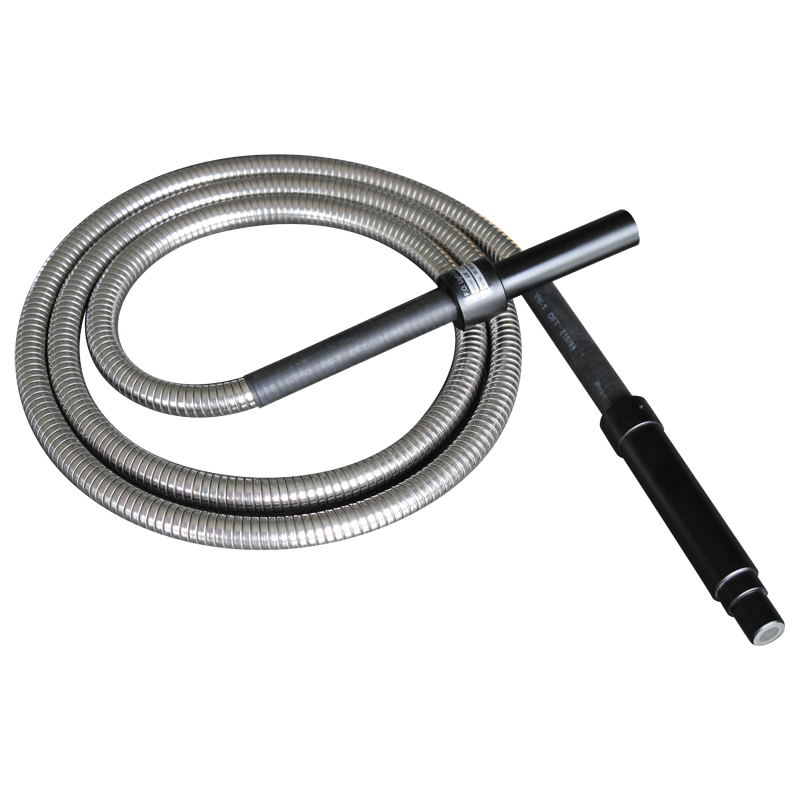

 The Fiber Bundle sheathing is made of PVC covered metal tubing and the gooseneck is made of semi-obedient, chrome-plated metal gooseneck tubing.
 Bend radius of the chrome gooseneck tubing is 2-3" (51 - 76).

 The standard output ferrules accept spot lenses with or without polarizing caps.

 Standard Light Guide input accepts our LED and Halogen Series light sources.

 Custom configurations are available. Lead time is required.

 All the Fiber Optic Bundles are Manufactured by HECHO.

Single Branch Fiber Optic Light Guide

Product Item: Flexible Fiber Optic Light Guide



Flexible Fiber Optic Bundle



Straight Fiber Optic Light Guide
