Let the light change life
· Free bending, flexible use
· A variety of HECHO standard sizes
· Standard input accepts HECHO LED and Halogen series light sources
· Custom configurations are available. Lead time is required.
/multimode-silica-fiber-bundle_p56.html

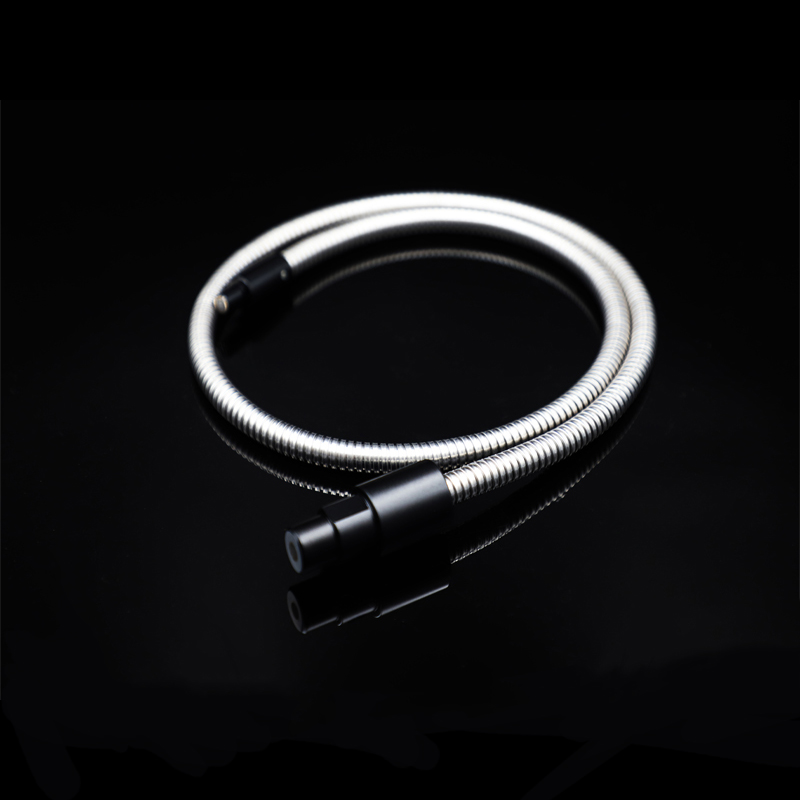

Product Item: MTF Flexible Fiber Optic Light Guide
| Model | Core Dia. | Fiber material | Length | Tubes | Spectral range |
| POFC-S4H-1000-F1 | 4mm | PMMA | 1000mm | Flexible SUS | 380 ~ 780nm |
| GOFC-S4H-1000-F1 | 4mm | GOF | 1000mm | Flexible SUS | 400 ~ 1400nm |
| POFC-S6H-1000-F1 | 6mm | PMMA | 1000mm | Flexible SUS | 380 ~ 780nm |
| GOFC-S6H-1000-F1 | 6mm | GOF | 1000mm | Flexible SUS | 400 ~ 1400nm |
| POFC-S8H-2000-F1 | 8mm | PMMA | 2000mm | Flexible SUS | 380 ~ 780nm |
| GOFC-S8H-2000-F1 | 8mm | GOF | 2000mm | Flexible SUS | 400 ~ 1400nm |
| POFC-S10H-2000-F1 | 10mm | PMMA | 1000mm | Flexible SUS | 380 ~ 780nm |
| GOFC-S10H-2000-F1 | 10mm | GOF | 1000mm | Flexible SUS | 400 ~ 1400nm |
| GOFC-S3H-1500-F1 | 3mm | GOF | 1500mm | Flexible SUS | 400 ~ 1400nm |
| SOFC-S3H-1500-F1 | 3mm | Silica fiber | 1500mm | Flexible SUS | 200 ~ 1200nm |
| GOFC-S2.5H-1000-F1H | 2.5mm | GOF | 1000mm | Flexible SUS | 400 ~ 1400nm |
Other dimensions can be customized.
Product Item: MTF Flexible Fiber Optic Light Guide
HECHO uses the imported high-transmittance rate of Glass Fibers to assembly the various light guide, when the need for narrow or specific occasions require high-intensity cold light or specific spectrum, the single Flexible Fiber Bundle can meet customer-specific demand, such as Hecho Light Sources and Flexible Light Guide are widely used for MTF (modulation transfer function).
According to customer requirements to provide OEM and ODM services, a variety of optional specifications, fiber optic protection tube can provide stainless steel hose, plastic coated stainless steel hose, metal hose can be shaped, plastic hose to meet the use of results.
Flexible Light Guide can be used in industrial automation, medical, optical and other industries. Such as Microscope lighting, Endoscopic lighting, Movable table lighting, MTF, IVD, POCT, etc.
Features:
The Fiber Bundle sheathing is made of PVC covered metal tubing and the gooseneck is made of semi-obedient, chrome-plated metal gooseneck tubing. Bend radius of the chrome gooseneck tubing is 2-3" (51 - 76).

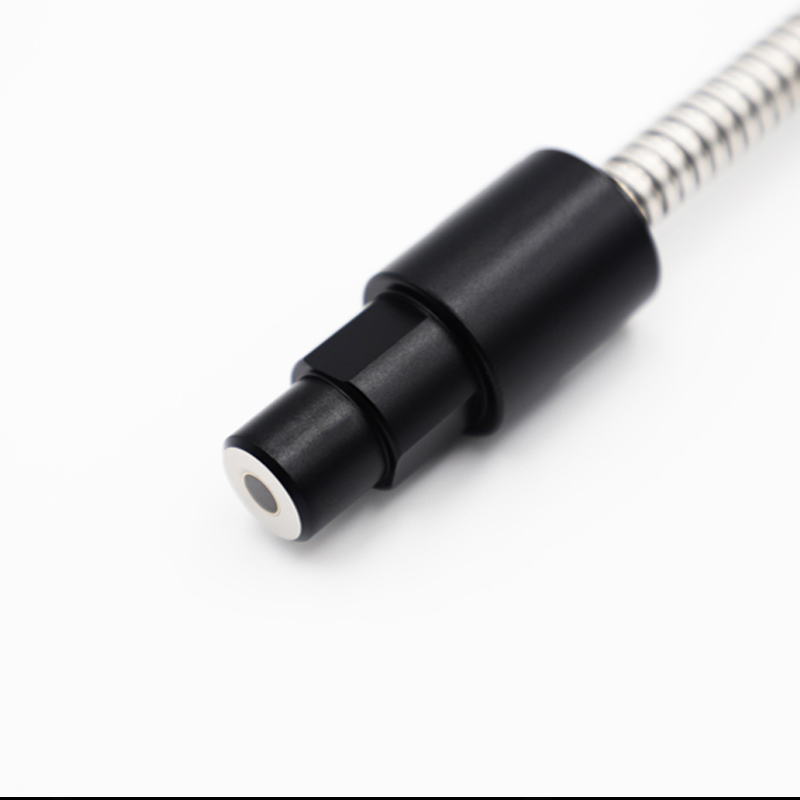

The standard output ferrules accept spot lenses with or without polarizing caps.

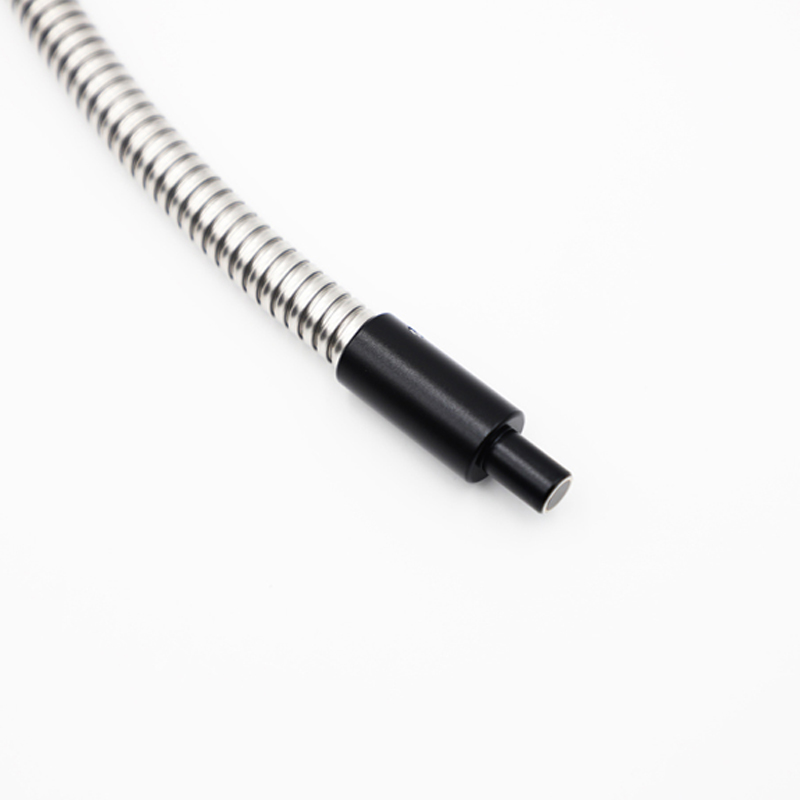

Standard Light Guide input accepts our LED and Halogen Series light sources.
Custom configurations are available. Lead time is required.
All the Fiber Optic Bundles are Manufactured by HECHO.
