PRODUCTS DETAILS

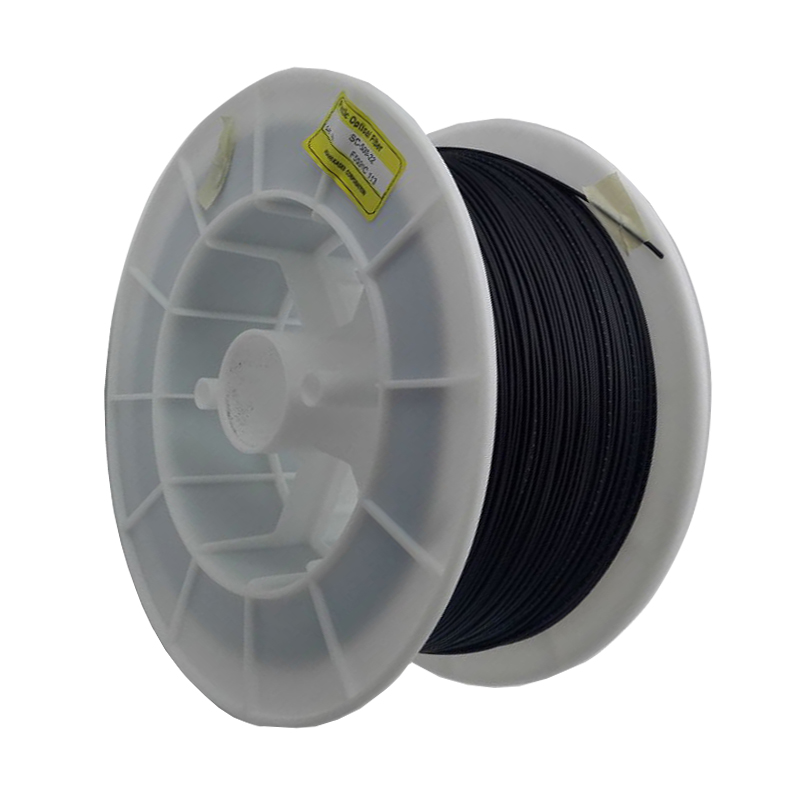

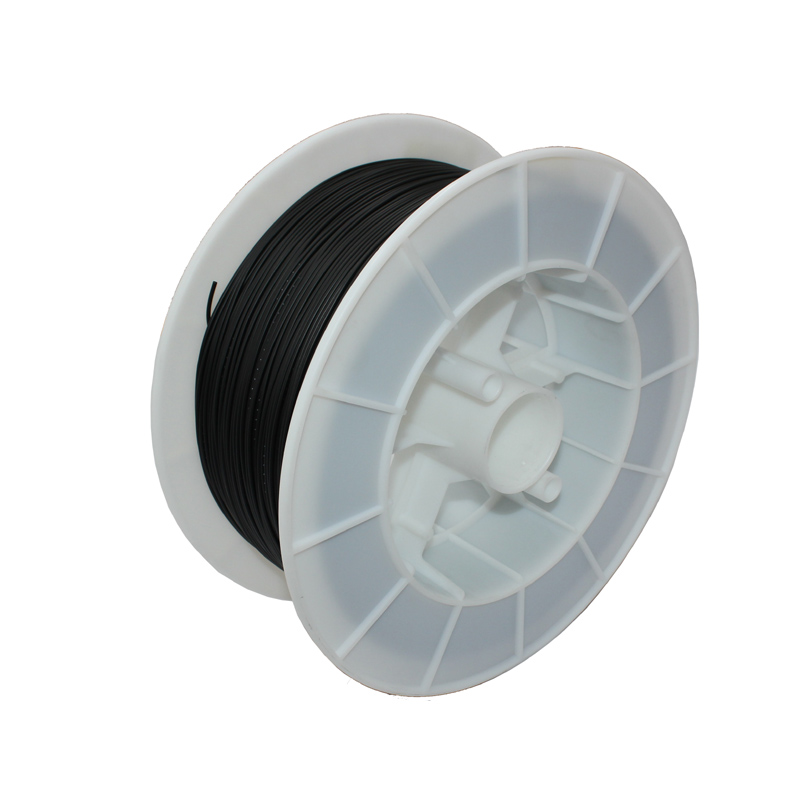

Asahi Kasei Plastic Fiber Optic Cable


    Various model for different applications

    Single-core and Multi-core fiber cables, outside with PVC jacket, effectively protecting the bare fiber from damage, to prevent external light on the optical fiber interference.

    Fiber cores is soft, can be bent, extended into a small space

    Environmental protection, non-toxic, non-metallic, recyclable


Inquire
  • Specifications
  • Application description
  • Basic Parameters

    Product Item: Asahi Kasei Plastic Fiber Optic Cables


    Model Core Dia./QTY O.D. Packing Outter Materials Loss (dB/km)
    DC-265-10 0.265mm×1 1.0±0.05 1000 PE 300
    DC-500 0.5mm×1 1.0±0.05 1000 PE 210
    DC-750-10 0.75mm×1 1.0±0.05 1000 PE 200
    DC-1000 1.0mm×1 2.2±0.07 1000 PE 190
    DC-1500-22 1.5mm×1 3.0±0.15 1000 PE 190
    SHCN-1000(E) 1.0mm×1 2.2±0.07 2000 PA12 250
    SHCN-500-10(E) 0.5mm×1 1.0±0.05 1000 PA12 250
    TCU-1000(L) 1.0mm×1 2.2±0.07 1000 LSZH  PE 160
    TCV-1000 1.0mm×1 2.2±0.07 1000 PVC  UL  VW-1 160
    MCS-500P-10 0.5mm(217 cores) 1.0±0.05 1000 PE 1000
    MCS-1000P 1.0mm(217 cores) 2.2±0.07 500 PE 600
    MCS-1000P-1.3 1.0mm(217 cores) 1.3±0.07 500 PE 600
    SHMCSN-1000P(E) 1.0mm(217 cores) 2.2±0.07 1000 PA12 600
    MCQ-1000 1.0mm(613 cores) 2.2±0.07 1000 PE 600
    MCQ-1500-22 1.5mm(613 cores) 2.2±0.07 1000 PE 600

    Product Item: Asahi Kasei Plastic Fiber Optic Cables


    Our lighting grade PMMA plastic optical fiber, from bare fiber to single-core optical fiber cable, from multi-core to stranded Fiber Optic Cable, a free combination of different products to meet a variety of fiber optic lighting applications.


    LED light source through the plastic optical fiber, can be directed to any position or direction, we can dot in the fiber side, leakage spot, a number of light leakage fiber optic fiber curtain effect can be formed, can also be combined into a variety of fiber optic or fiber optic lights Hotels, clubs, conference rooms, nightclubs, bars, KTV, cultural relics lighting, jewelry lighting, solar light guide, and so on, can be used in industrial transmission, optical lighting, reception hall.

    Asahi Kasei PMMA Fiber Optic Cables

    Product Item: Asahi Kasei Plastic Fiber Optic Cables


    Hecho supply the high quality of POF cables for fiber lighting application. All our materials are used imported Mitsubishi ESKA plastic optical fibers, Toray plastic optical fibers, and Asahi KASEI plastic optical fibers.
