Let the light change life
· High quality Silica Fiber Optic
· NA 0.22/0.37
· Fiber core diameter of around 200 µm to 1000 µm
· Standard connectors: SMA905, SMA906, ST, FC, etc...
Product Item: Medical Laser Fiber
| Fiber Type | HCS / PCS | ||
| Single fiber diameter | 200/300/400/600/800um | ||
| Length | Customized | ||
| Wavelength | 200 ~ 1100nm / 350 ~ 1700nm | ||
| N.A. | 0.22 / 0.37 | ||
| Transmission efficiency | ≥80% (632.8nm) | ||
| Connector | SMA905 / SMA906 / FC / ST / etc... | ||

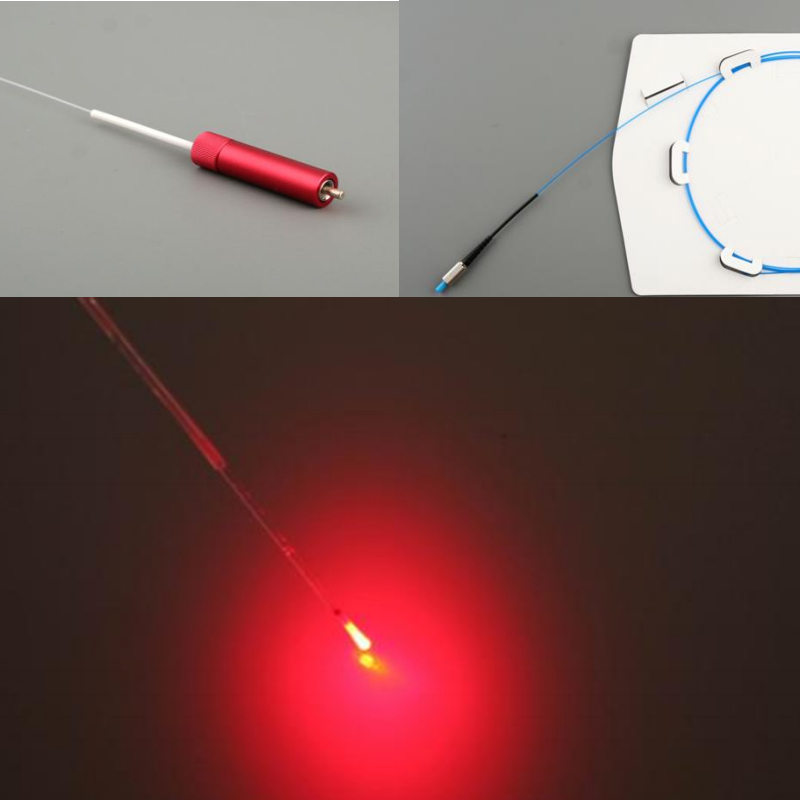

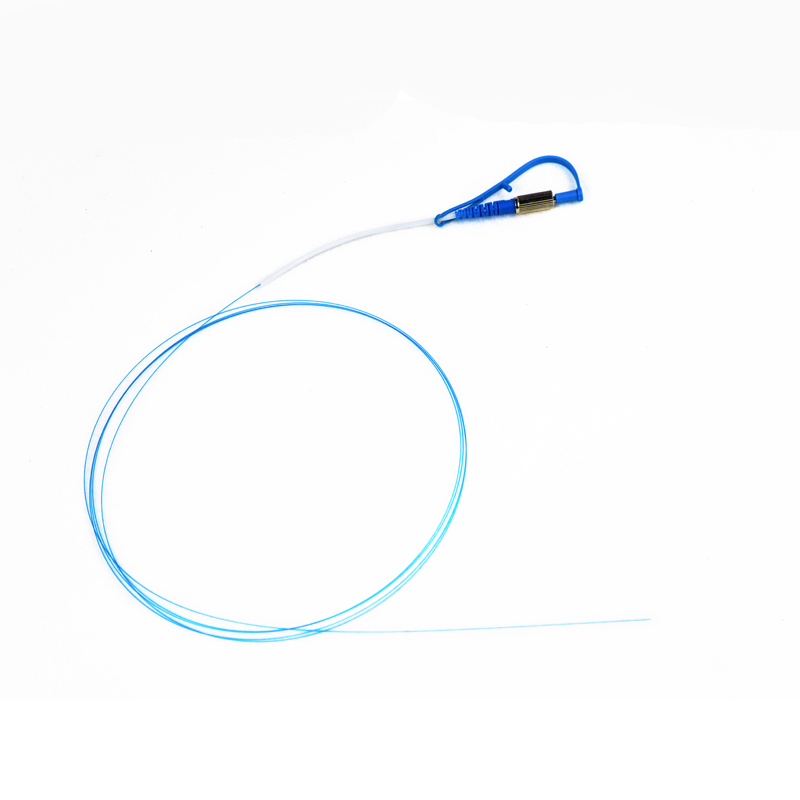

Product Item: Medical Laser Fiber
Medical Laser Fiber used in line with medical standards of materials, can be sterilized, into the body part of the biocompatibility requirements.
The fiber cable and laser therapeutic instrument are used together. The main transmission wavelengths are: 808 nanometer semiconductor laser, 1064 nanometer YAG laser, and 2100 nanometer wavelength helium neon laser;

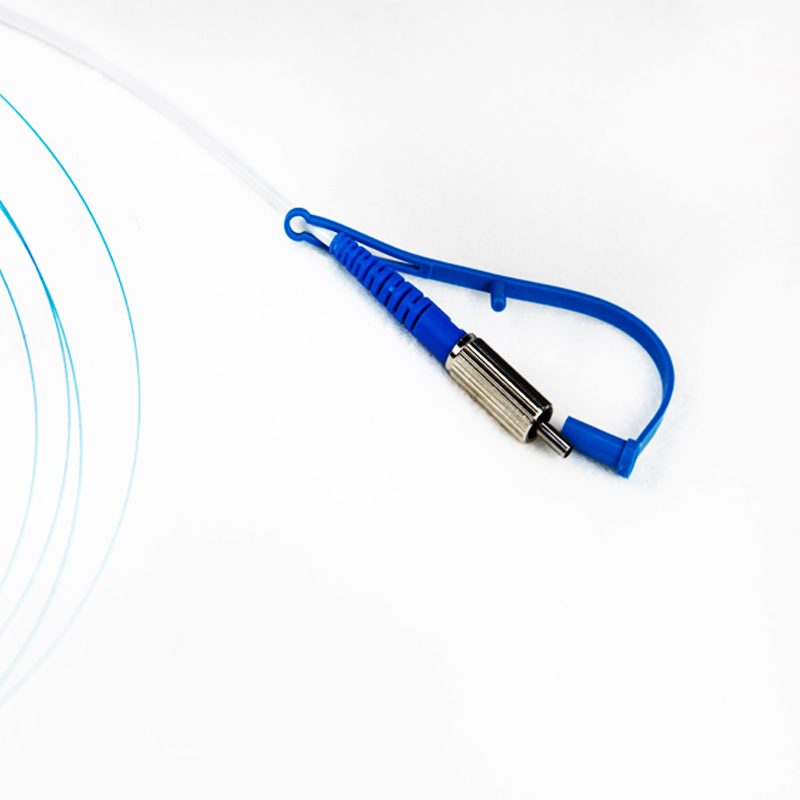

This product consists of three parts: SMA905 standard connector, optical fiber, and protection tube. Optical fiber is made of Quartz glass, SMA905 standard connector is copper, and protective tube is made of silicone rubber.
Optical fiber transmission efficiency: when the total length of the optical fiber is ≤ 5m, the transmission efficiency of the corresponding wavelength is not less than 80% when it is placed flat;
Optical fiber materials meet medical standards, can be disinfection sterilization, which is accord with the requirement of biocompatibility, which entered the body.
Product Item: Medical Laser Fiber
Holmium laser medical optical fiber For Medical Application Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
The fiber wavelength can be 190~1100nm or 400~2700nm. It is widely used on popular spectrometers. OEM or ODM is welcome. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
Medical Laser Fiber For Medical Applications. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
Quartz Fiber Cable, UV Light Guide Large core Industrial energy fiber Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
Hecho supply the multi-mode fiber bundles in straight, bifurcated (Y-shape), or fan-out configurations and round or linear bundle end configurations light guides. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
HECHO provide various fire detection Fiber Optic Bundles, use the Schott glass fibers, flame detection fiber optic bundle has a good transmittance and temperature performance. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 3 weeks
Line Light Fiber bundles providing the uniform lines of white light for LED, LCD, OLED Display Inspection applications. Min order:1 Payment:T/T, Western Union ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 3 weeks
Multi-Branched Fiber Optic Bundles Including multi-input and multi-output optical fiber bundles, multi-tube fiber can be used for jewelry lighting, decorative lighting, UV curing, microplate reader, biochemical analyzer, color printing and other fields. Min order:1 Payment:T/T, Western Union ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 3 weeks
