Let the light change life
· Free bending, flexible use
· Use High quality Schott Glass Fibers
· Standard input light sources
· Custom configurations are available. Lead time is required

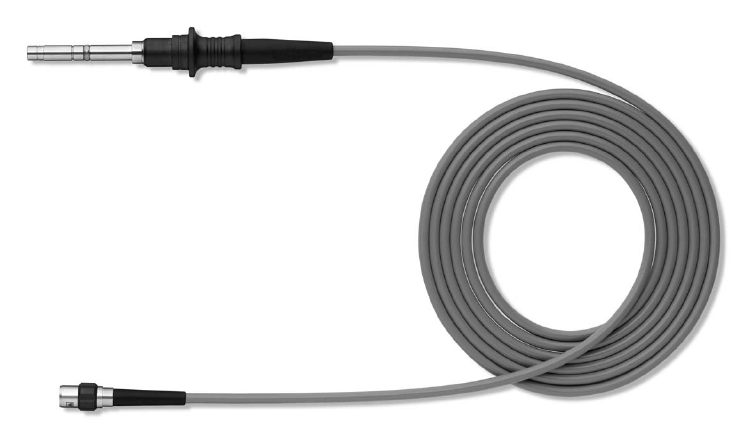

Product Name: Endoscope Fiber Optic Light Guide Cable
| Model | Fiber Diameter | Length | Fiber Type |
| WA03200A | 3.5mm | 3m | Bonded |
| WA03202A | 3.5mm | 3m | Bonded |
| WA03210A | 5mm | 3m | Bonded |
| WA03212A | 5mm | 3m | Bonded |
| WA03300A | 3mm | 3m | Bonded |
Other dimensions can be customized.
Product Name: Endoscope Fiber Optic Light Guide Cable
HECHO uses imported high-transmittance glass fiber to manufacture the endoscope light guide cable which can perfect replacement the original fiber optic bundles.
According to customer requirements to provide OEM and ODM services, a variety of optional specifications, fiber optic protection tube can provide stainless steel hose, plastic coated stainless steel hose, metal hose can be shaped, plastic hose to meet the use of results.
Single tube light guide can be used in industrial automation, medical, optical and other industries. Such as Microscope lighting, Endoscopic lighting, Movable table lighting, etc.
HECHO produce a variety of chromatic control fiber, used to detect gravure printing between the various groups of color printing error, and automatically be corrected in real time, can be used for TAIYO, BOBST, and other color printing equipment. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
The fiber wavelength can be 190~1100nm or 400~2700nm. It is widely used on popular spectrometers. OEM or ODM is welcome. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
Super Lizer therapy used for soft tissue twisting contusion recovery period to improve local blood circulation, promote swelling subsided and analgesic. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
Hecho supply the multi-mode fiber bundles in straight, bifurcated (Y-shape), or fan-out configurations and round or linear bundle end configurations light guides. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
Glass fiber in the ammonia nitrogen line automatic detector application, total phosphorus online automatic detector application Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
Endoscope Light Guide Cables Replacements provided by Hecho Fiber Optics. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 2 weeks
High transmission rate Fiber Optic Cables, Fiber Optic Bundles For qPCR, Real time PCR Instruments, for testing COVID-19 virus. Min order:1 Original Region:Nanjing Lead Time:3 - 4 weeks
HECHO provide various fire detection Fiber Optic Bundles, use the Schott glass fibers, flame detection fiber optic bundle has a good transmittance and temperature performance. Min order:1 ShippingPort:Nanjing Original Region:Nanjing Lead Time:1 - 3 weeks
