PRODUCTS DETAILS

Area Detection Fiber Optic Sensor

    Wide range of beams

    High transmission rate of imported plastic fiber optic

    OEM & ODM service is available


Inquire Download
  • Specifications
  • Application description
  • Basic Parameters

    Product Item: Wide Area Detection Fiber Optic Sensor


      Model
      Appearance


      Minimum bend

      Radius


      Detection distance

      mm

      Optical axis Diameter

      mm

      Length
      Temperature
      Model
      Thrubeam Fiber Optic Sensor
      Optical axis width 5.25mm

      R4
      440
      0.25
      2m
      -40 ~ +70℃

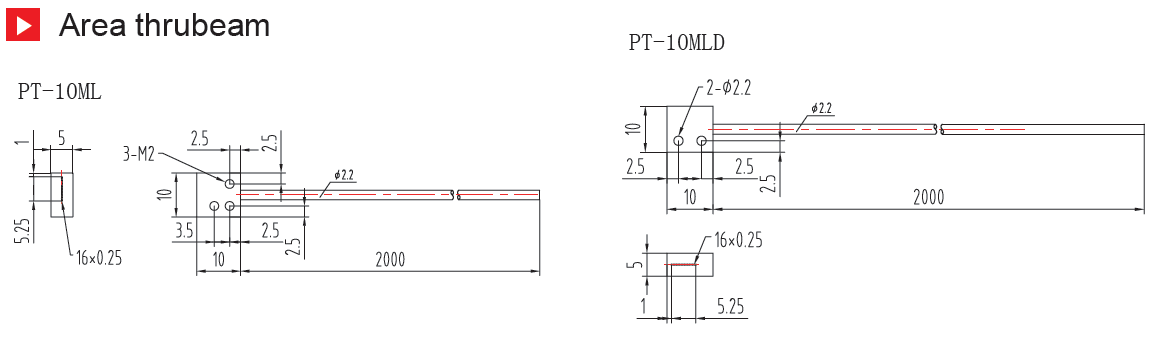

      PT-10ML
      Optical axis width 5.25mm

      R4
      150
      0.25
      2m
      -40 ~ +70℃
      PT-10MLD
      Optical axis width 5.25mm

      R4
      440
      0.25
      2m
      -40 ~+70℃

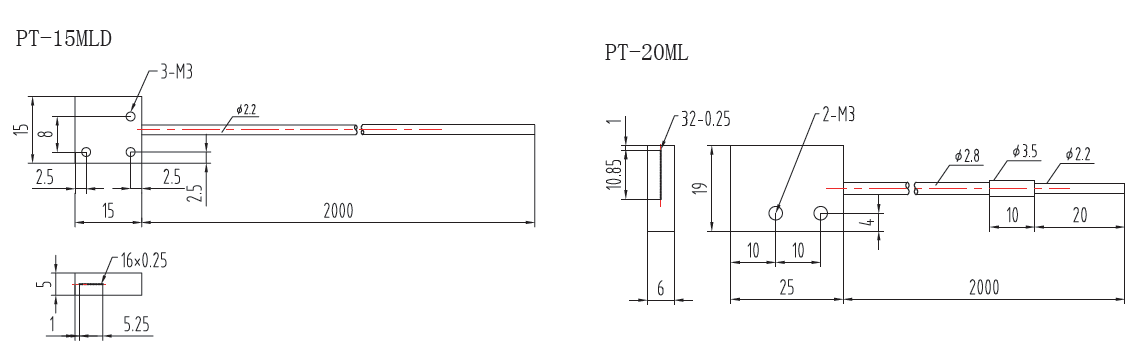

      PT-15MLD
      Optical axis width 10.85mm

      R4
      440
      0.25
      2m
      -40 ~+70℃
      PT-20ML
      Optical axis width 24.8mm

      R4
      300
      0.25
      2m
      -40 ~+70℃

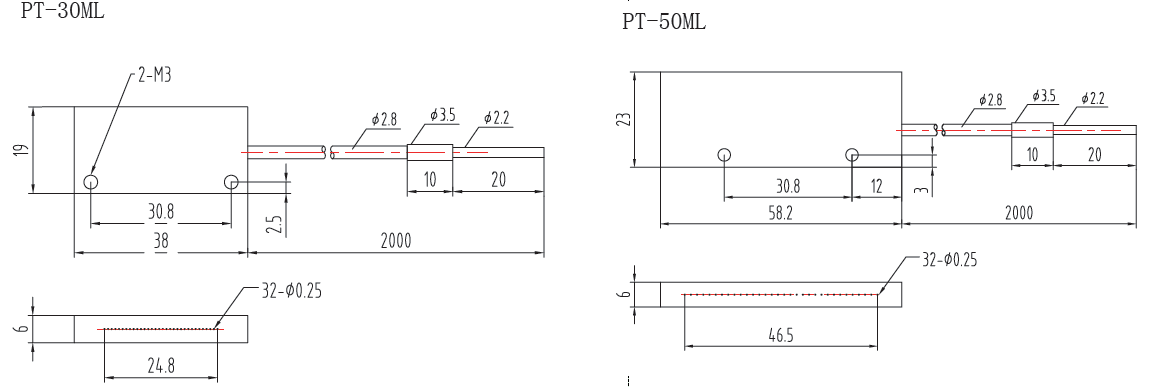

      PT-30ML
      Optical axis width 46.5mm

      R4
      300
      0.25
      2m
      -40 ~+70℃
      PT-50ML
      Optical axis width 5.25mm

      R4
      440
      0.25
      2m
      -40 ~+70℃

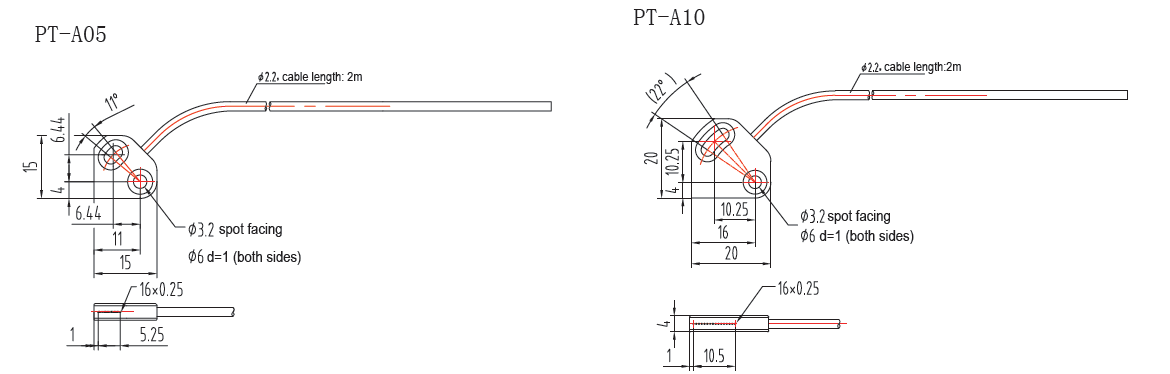

      PT-A05
      Optical axis width 10.5mm

      R4
      440
      0.25
      2m
      -40 ~+70℃
      PT-A10



    Type
    Appearance

    Minimum bend

    Radius

    Detection distance

    mm

    Length
    Temperature
    Model
    Reflective fiber optic sensor
    Optical axis width 5.95mm

    R4
    50
    2m
    -40 ~+70℃
    PR-10ML
    Optical axis width 5.95mm

    R4
    50
    2m
    -40 ~+70℃
    PR-15MLD
    Optical axis width 10.85mm

    R4
    140
    2m
    -40 ~+70℃
    PR-20ML
    Optical axis width 10.85mm

    R4
    140
    2m
    -40 ~+70℃
    PR-20MLS
    Optical axis width 24.8mm

    R4
    140
    2m
    -40 ~+70℃
    PR-30ML
    Optical axis width 46.5mm

    R4
    140
    2m
    -40 ~+70℃
    PR-50ML
    Optical axis width 5.25mm

    R4
    140
    2m
    -40 ~+70℃
    PR-A05D
    Optical axis width 10.85mm

    R4
    140
    2m
    -40 ~+70℃
    PR-A10D

    Product Item: Wide Area Detection Fiber Optic Sensor

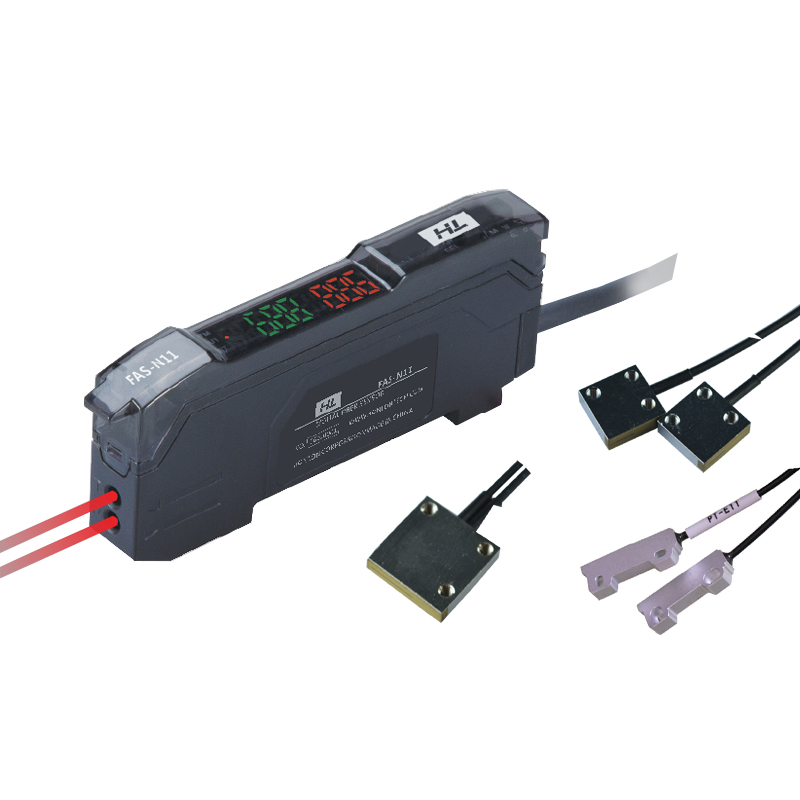

    Area Detection Fiber Optic Sensor using high transmission rate of imported plastic optical fiber production, travel a wide range of light beam, suitable for moving objects will be moving applications. Can replace the KEYENCE / OMRON / AUTONICS equivalent fiber optic sensor. Hecho providing OEM & ODM services.

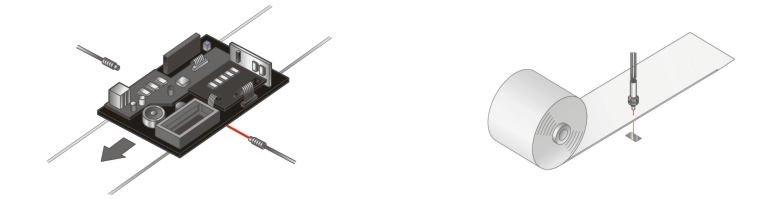

     M6\M4\M3 series optical fiber with convex lens can increase the

    distance of detecting, using for long range detection.                                                  Use for transparent film of packing machine.

    Area Detection Fiber Optic Sensor

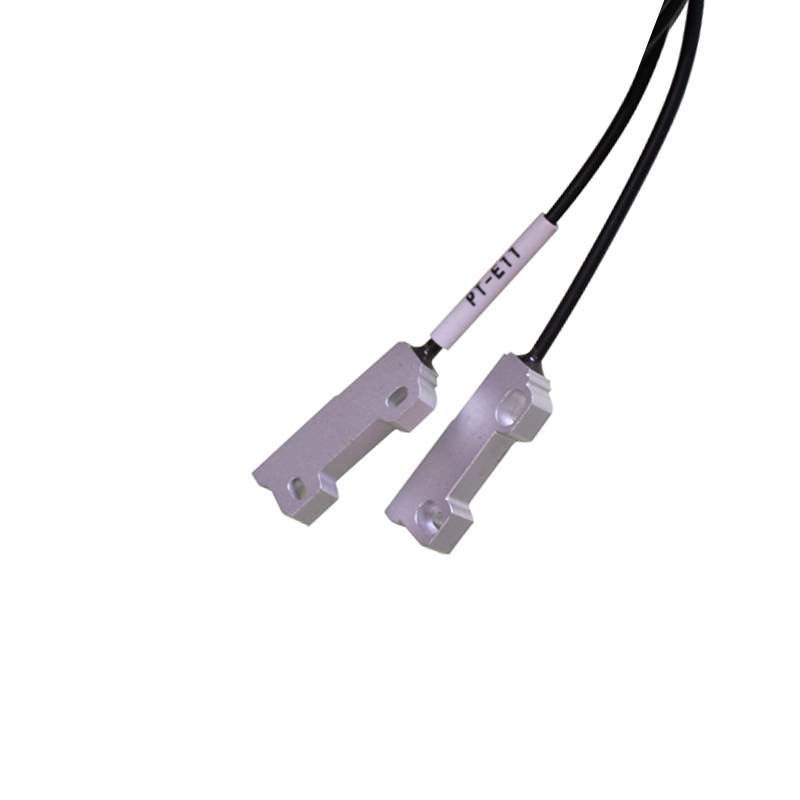

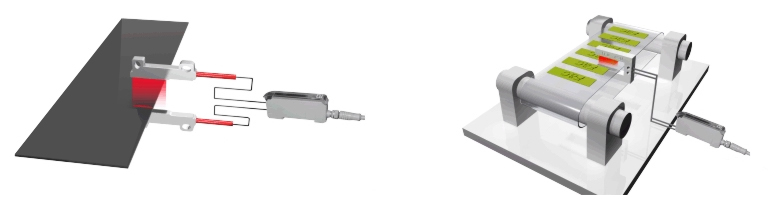

     Replace Keyence E11 rectangle shape optical fiber can be use on

    detecting shift of material belt.                                  U shape optical fiber can recognize dual transparent film and single layer.

    Wide Area Fiber Optic Sensor


    Product Item: Wide Area Detection Fiber Optic Sensor


    Fiber Optic SensorArea Detection Fiber Optic SensorFiber Optic SensorArea Detection Fiber Optic Sensor
