Digital Fiber Optic Sensor Amplifier
Home

Fiber Optic Sensor

Digital Fiber Optic Sensor Amplifier

Digital Fiber Optic Sensor Amplifier



· Complete Setup in Just One Click

· Automatic Maintenance

· Repeatable detection and simple operation



Product Item: Digital Fiber Optic Sensor Amplifier



Type FAS-N11 FAS-N11P
Model NPN PNP
Light source Red, 4-element LED
Response time 100 µs (HIGH SPEED)/250 µs (FINE)/1 ms (SUPER)/4 ms (TURBO)/16 ms (MEGA)
Output option LIGHT-ON / DARK-ON (Switch option)
Detection method Light intensity (Area detection, Automatic tracking sensitivity function)
Control output NPN / PNP open collector 24 V; max: 100 mA; residual voltage 1 V
Power voltage 12 - 24 V DC ±10% ripple (P-P) 10% or less
Current
Consumption
Normal: 750 mW or less (31 mA max. at 24 V, 40 mA max. at 12 V)
Eco on mode: 580 mW or less (24 mA max. at 24 V, 28 mA max. at 12 V)
*Using high speed mode, the power consumption will increase 160 Mw (7mA)
Operating
ambient
luminance
Incandescent lamp: 20000 lux or less; Sunlight: 30000 lux or less
Operating
ambient
temperature
‘-10 to +55 °C (no freezing)
Operating
ambient humidity
35 to 85% RH (no condensation)
Vibration
resistance
10 to 55 Hz Compound amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis
Shock resistance 500 m/s2,  3 times for each of X,Y,Z axis
Case material PC

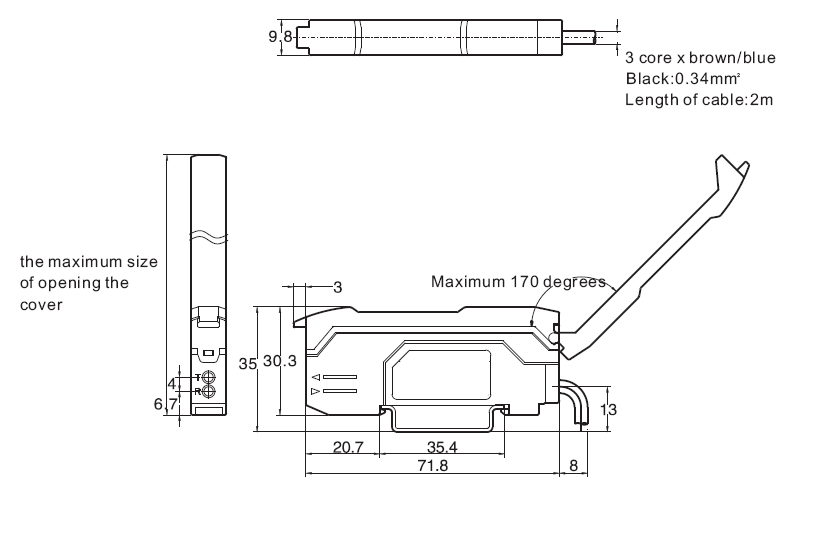

Dimension 30.3mm (H) x 9.8mm (W) x 71.8mm (D)
Weight Approx 80g

Product Item: Digital Fiber Optic Sensor Amplifier

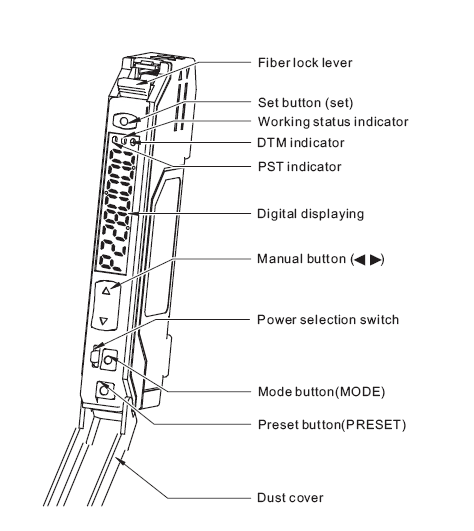

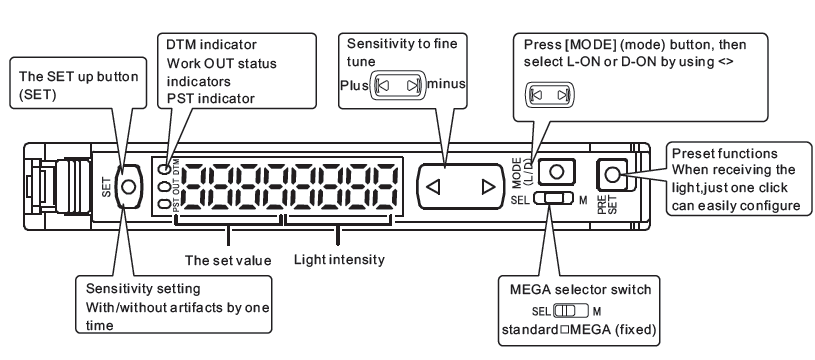

· Quick start

Digital Fiber Optic Sensors

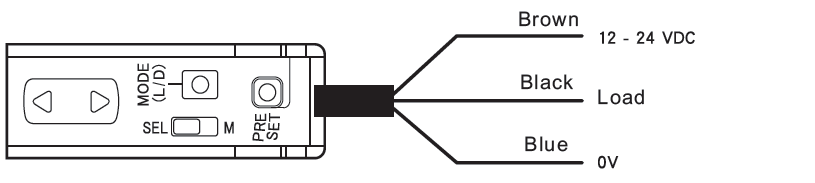

 Wiring

Digital Fiber Optic Sensors



Calibration method

· Detect very subtle differences

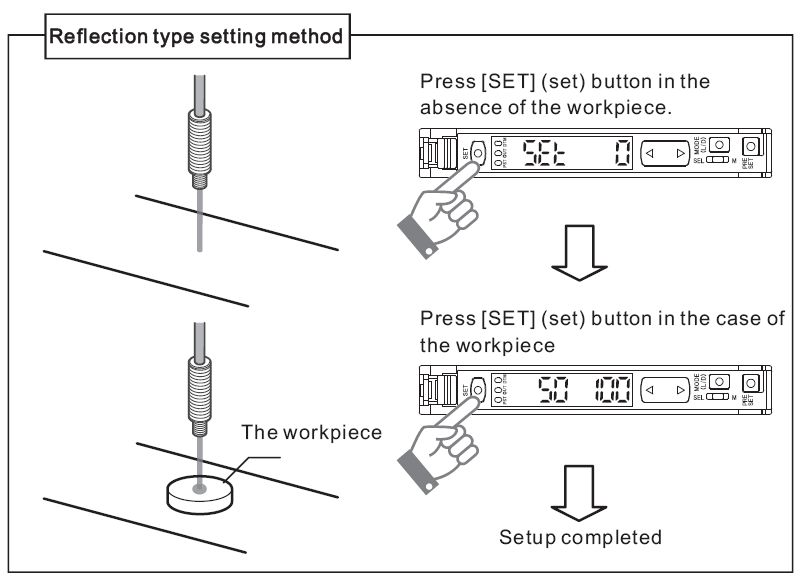

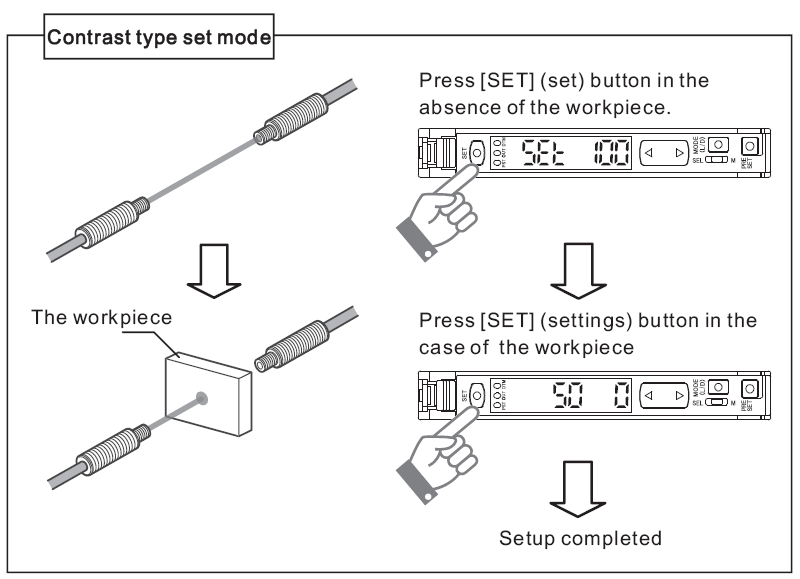

Two-point calibration
Two point calibration is a basic way of calibration.
You can automatically set the sensitivity, simply press [ SET ] (SET) button twice.
Press once in place and not place.
Digital Fiber Optic Sensors

Digital Fiber Optic Sensors



Two proofreading based on workpiece with and without imposing calibration. Set
point point between these two cases.
If the differences of two cases is too small, the completion of calibration, there will
be a "----" flash 2 seconds time.



Part Number:

Digital Fiber Optic Sensor

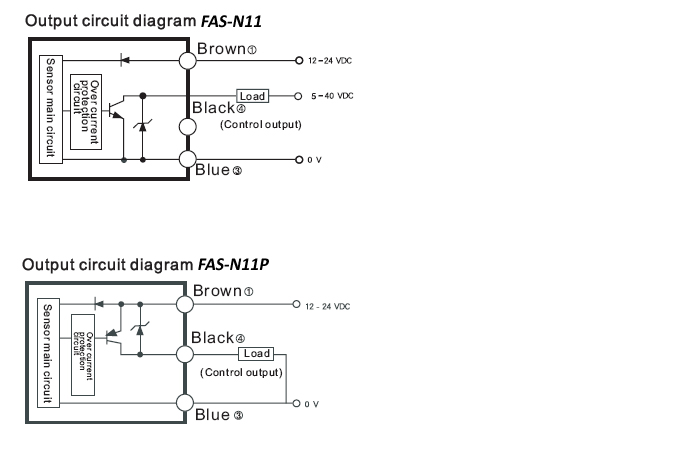

Connecting external device

Dialing the power switch, output two different channels (NPN/PNP) type switch mode.

· NPN     · PNP

Digital Fiber Optic Sensor

Product Item: Digital Fiber Optic Sensor Amplifier



Digital Fiber Amplifier



Digital Fiber Optic SensorsDigital Fiber Optic Sensors
