PRODUCTS DETAILS
Fiber Optic Sensor

Threaded Connect Fiber Optic Sensor


    Various thread sizes are available
    Use high transmission rate of imported plastic and glass fiber for production
    OEM & ODM is available.
    Widely used for Industrial Automation, Logistics Automation, and many other applications.


Inquire Download
  • Specifications
  • Application description
  • Basic Parameters

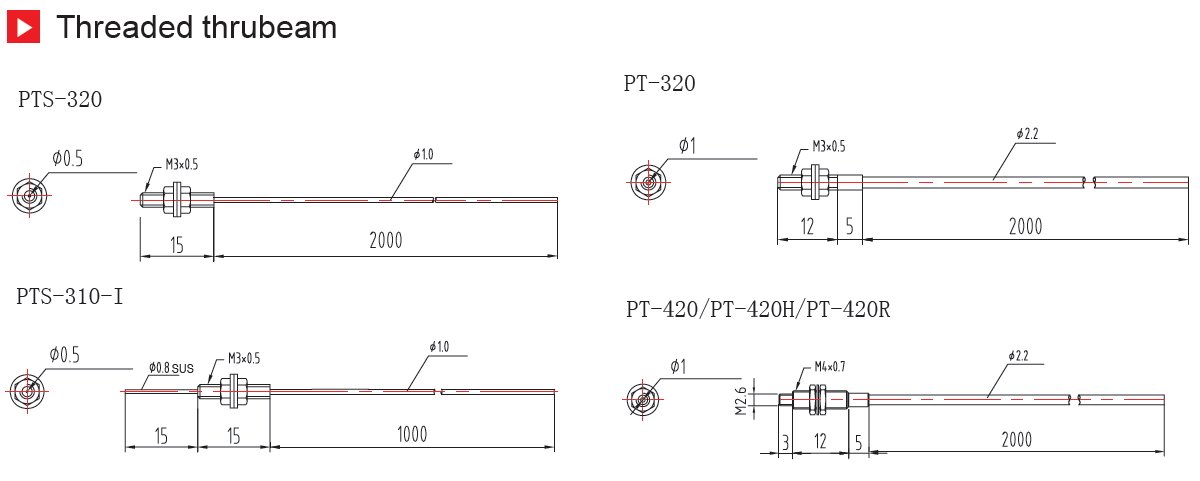

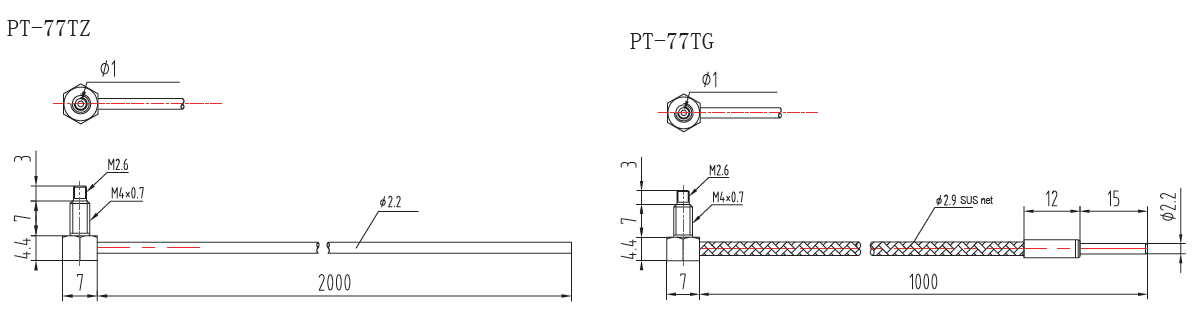

    Product Item: Threaded Connection Fiber Optic Sensor


    Type
    Appearance

    Minimum bend

    Radius

    Detection distance

    (mm)

    Axis diameter

    (mm)

    Length
    Temperature
    Product Model
    Transmission fiber optic sensors
      M6 Thread

    R25
    1300
    1.5
    2m
    -40 ~ +70℃
    PTL-620
      M4 Thread

    R4
    440
    Φ0.265*8
    2m
    -40 ~ +70℃

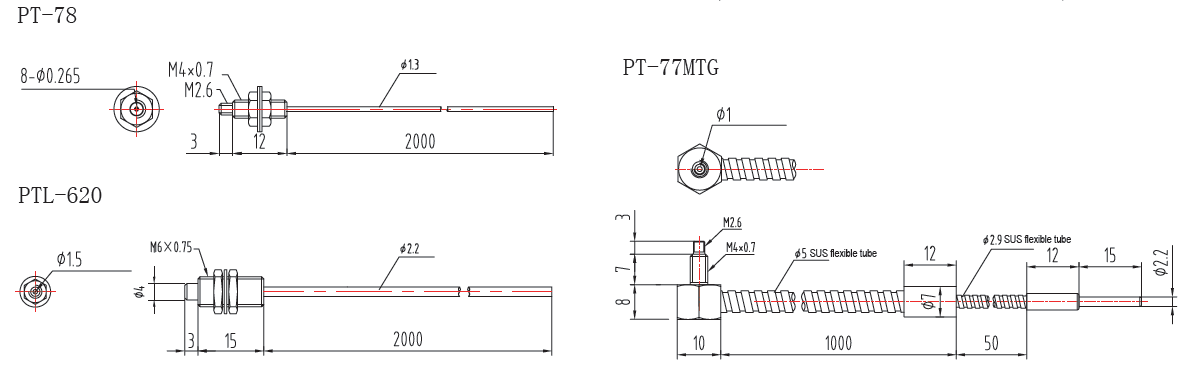

    PT-78
      M4 Thread

    R10
    880
    1.0
    1m
    -40 ~ +70℃
    PT-77G
      M4 Thread

    R25
    1100
    1.0
    2m
    -40 ~ +70℃

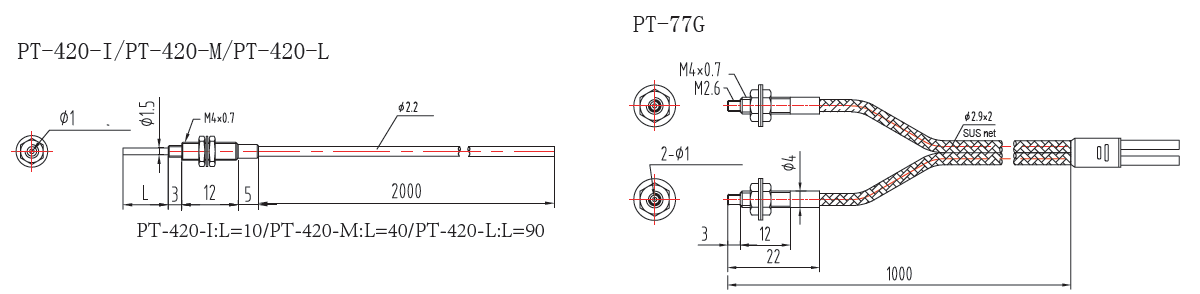

    PT-420-L
      M4 Thread

    R2
    880
    1.0
    2m
    -40 ~ +70℃
    PT-420R
      M4 Thread

    R25
    1100
    1.0
    2m
    -40 ~ +70℃
    PT-420
      M4 Hexagon

    R20
    640
    1.0
    1m
    -40 ~ +70℃
    PT-77MTG
      M4 Hexagon

    R10
    640
    1.0
    1m
    -40 ~ +70℃
    PT-77TG
      M4 Hexagon

    R2
    640
    1.0
    2m
    -40 ~ +70℃
    PT-77TZ
      M3 Thread

    R25
    1100
    1
    2m
    -40 ~ +70℃
    PT-320
      M3 Thread

    R10
    140
    0.5
    1m
    -40 ~ +70℃
    PTS-310-I
      M3 Thread

    R10
    140
    0.5
    2m
    -40 ~ +70℃
    PTS-320
      M6 Thread

    R25
    1300
    1.5
    2m
    -40 ~ +70℃
    PTL-620

    Type
    Appearance

    Minimum bend

    Radius

    Detection distance

    (mm)

    Length
    Temperature
    Product Model

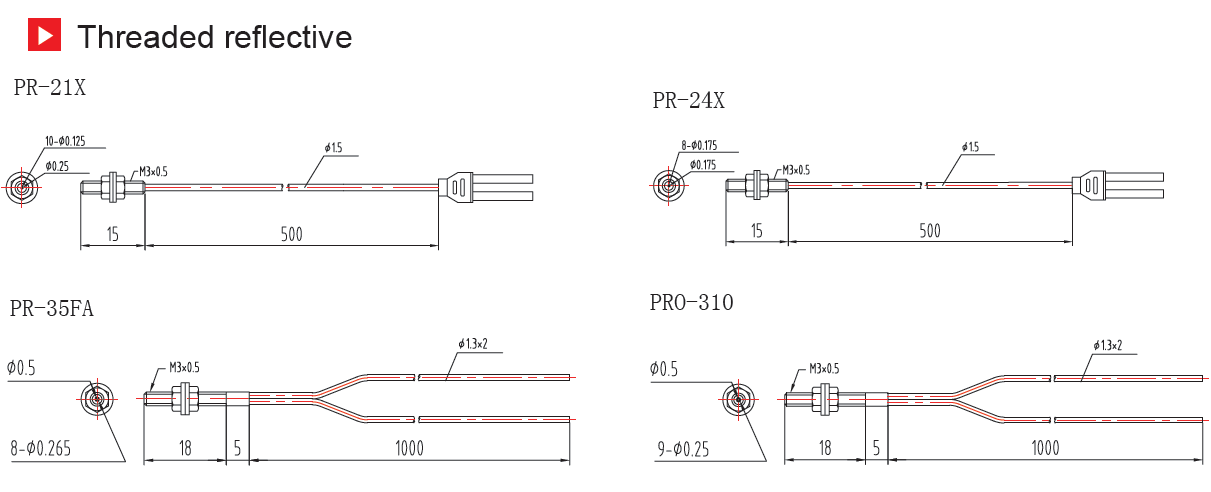

    Reflective fiber optic sensors

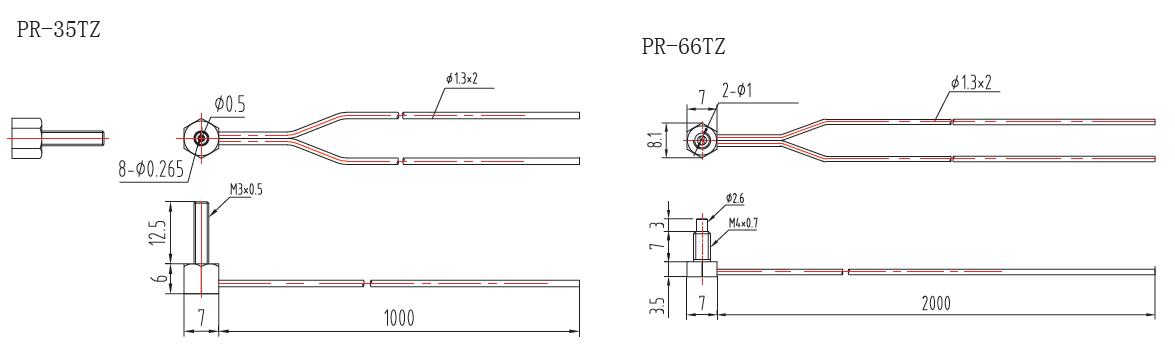

      M3 Hexagon coaxial

    R2
    70
    1m
    -40 ~ +70℃
    PR-35TZ
      M3 Thread coaxial

    R25
    110
    1m
    -40 ~ +70℃
    PRO-310
      M3 Thread coaxial

    R25
    110
    1m
    -40 ~ +70℃
    PR-35FA
      M3 Thread coaxial

    R2
    72
    1m
    -40 ~ +70℃

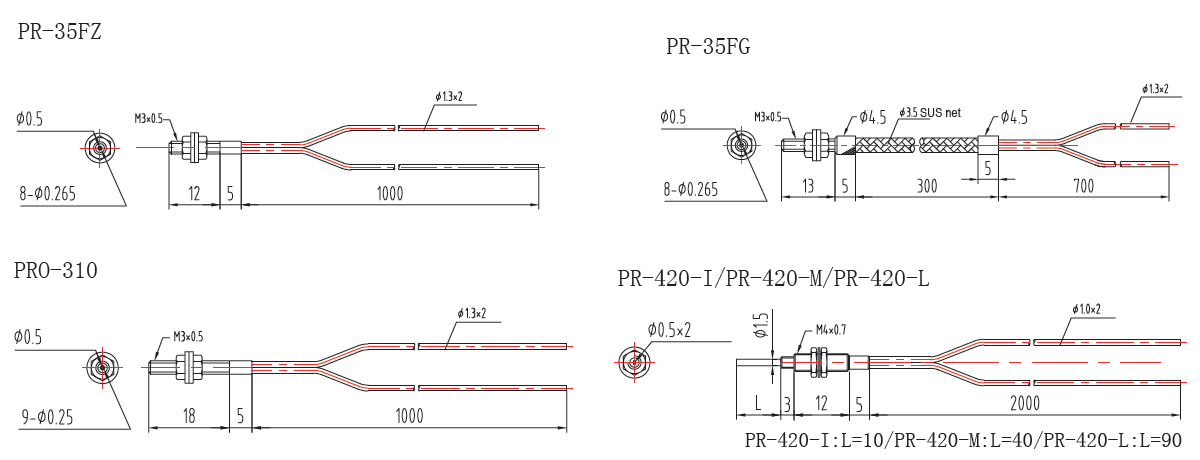

    PR-35FZ
      M3 Thread coaxial

    R10
    72
    1m
    -40 ~ +70℃
    PR-35FG
      M3 Thread coaxial

    R25
    36
    50cm
    -40 ~ +70℃
    PR-21X
      M3 Thread coaxial

    R10
    13
    50cm
    -40 ~ +70℃
    PR-24X
      M4 Hexagon

    R2
    140
    2m
    -40 ~ +70℃
    PR-66TZ
      M4 Thread

    R2
    190
    2m
    -40 ~ +70℃
    PR-420R
      M4 Thread

    R25
    300
    2m
    -40 ~ +70℃
    PR-420
      M4 Thread

    R25
    300
    2m
    -40 ~ +70℃
    PR-420-L
      M6 Hexagon

    R2
    210
    2m
    -40 ~ +70℃
    PR-67TZ
      M6 Hexagon

    R10
    210
    1m
    -40 ~ +70℃
    PR-67TG
      M6 Hexagon

    R25
    210
    1m
    -40 ~ +70℃
    PR-67MTG
      M6 Hexagon coaxial

    R10
    70
    1m
    -40 ~ +70℃

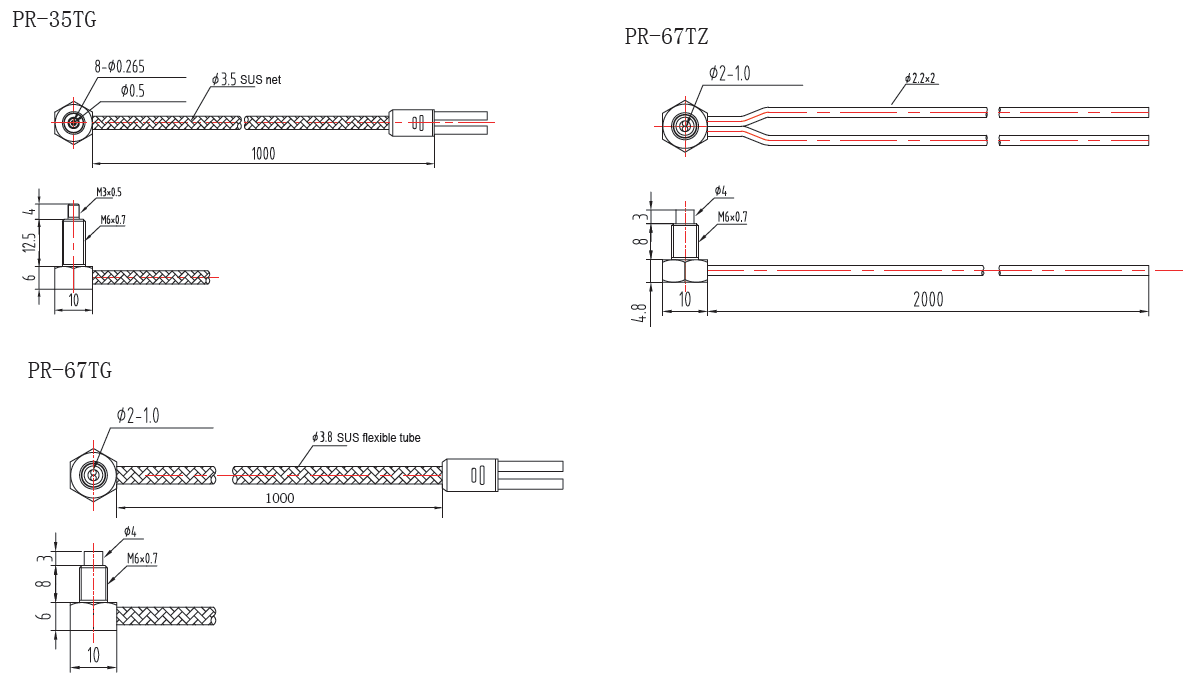

    PR-35TG
      M6 Thread

    R25
    300
    2m
    -40 ~ +70℃
    PR-620
      M6 Thread

    R2
    190
    2m
    -40 ~ +70℃
    PR-620R
      M6 Thread

    R25
    300
    2m
    -40 ~ +70℃
    PR-620-L
      M6 Thread

    R25
    380
    2m
    -40 ~ +70℃
    PRL-620
      M6 Thread

    R10
    210
    1m
    -40 ~ +70℃
    PR-67G

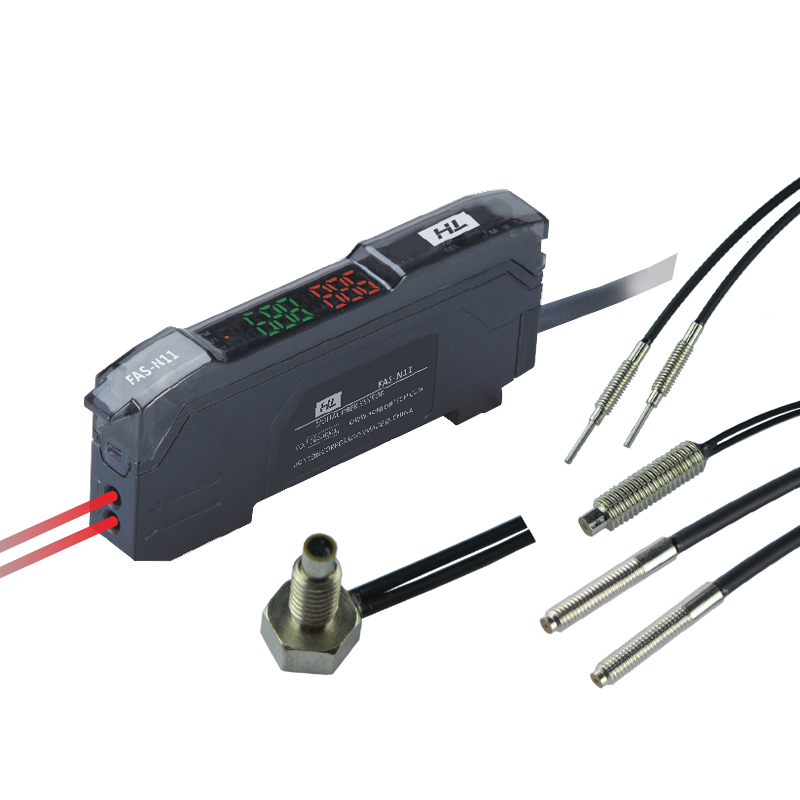

    Product Item: Threaded Fiber Optic Sensor

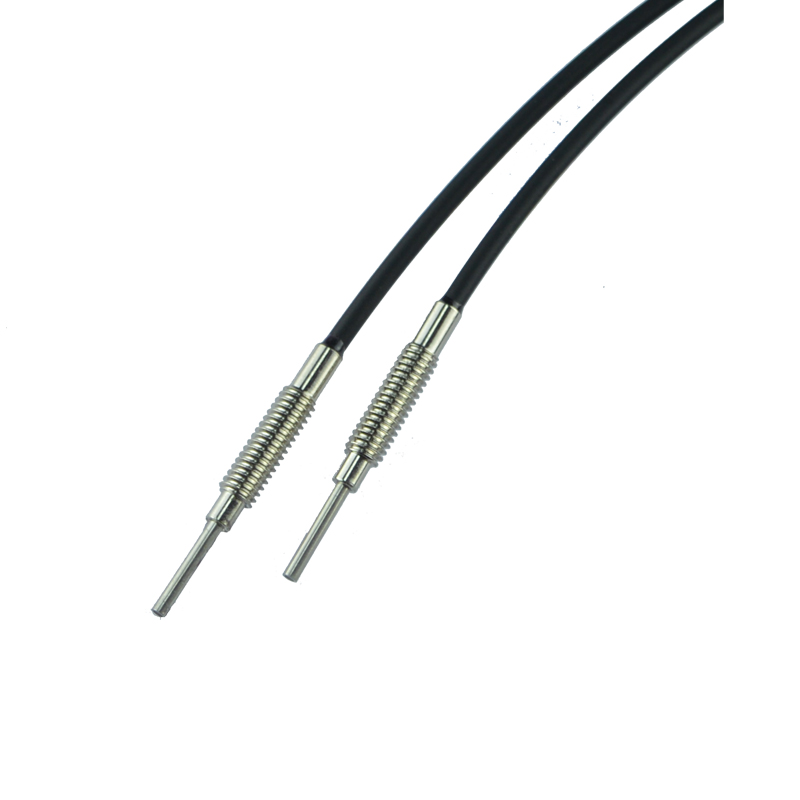

    Threaded fiber optic sensor using high transmission rate of imported plastic optical fiber and glass fiber production, a variety of standard thread size optional, easy to install in the bracket or the use of machinery and equipment. Can replace the KEYENCE / OMRON / AUTONICS equivalent fiber optic sensor. Provide OEM & ODM services.

     Easy to install

    Only a screw can be fixed the module. You now have the standard optical fiber modules do not need to be prepared by the additional or repairs can be replaced.

     Save a space, out of trouble

    The fiber sensors only need smaller installation space.This eliminates the winding cable problem.

     Won't fracture

    Do not break for the use of optical fiber cable characteristics, apex can be folded like a periscope to right Angle.This design need space, far less than traditional models.


    Optical fiber sensors, which are widely used in industrial automation, logistics automation, etc.


    The first step is to choose the appropriate sensor applications fiber and special configuration.

    HECHO will all kinds of made of plastic or glass fiber optical fiber into the ideal automation solution.

    These solutions are well suited for according to the application needs to connect optical fiber, flexible wiring, high temperature resistant or special corrosion occasion.


    Plastic optical fiber bending radius is small, highly flexible, and optional cut short, and glass fiber has corrosion resistance, high temperature resistance and other properties.

    They can choose a variety of ring or personalized bushing, almost meet all installation requirements.

    Optical fiber protection shell can be according to the use made of plastic, metal, or under the special chemical etching, teflon.

    Fiber Optic SensorFiber Optic Sensor

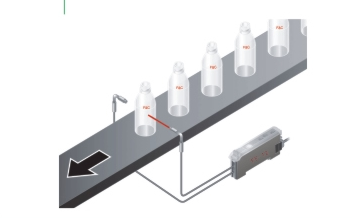

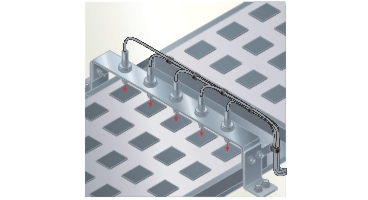

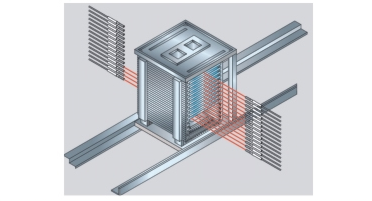

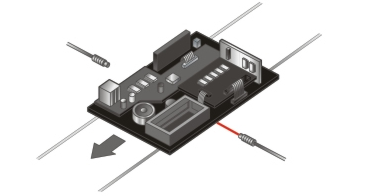

                           optical fiber applied to counting or detection                                    Detected object whether fully stacked.


    Fiber Optic Sensor M4Fiber Optic Sensor


    1) M6\M4\M3 series optical fiber with convex lens can increase the distance of detecting, using for long range detection.

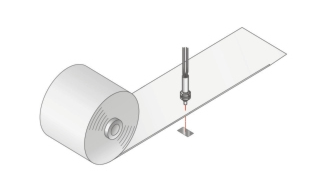

    2) Use for transparent film of packing machine.



    1) Detection of Translucent or transparent objects by through-beam type optical fiber.(universal type)

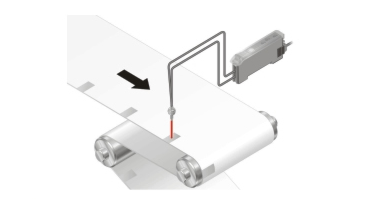

    2) Using to material belt mark detection, because of different reflection rate from different color of products.

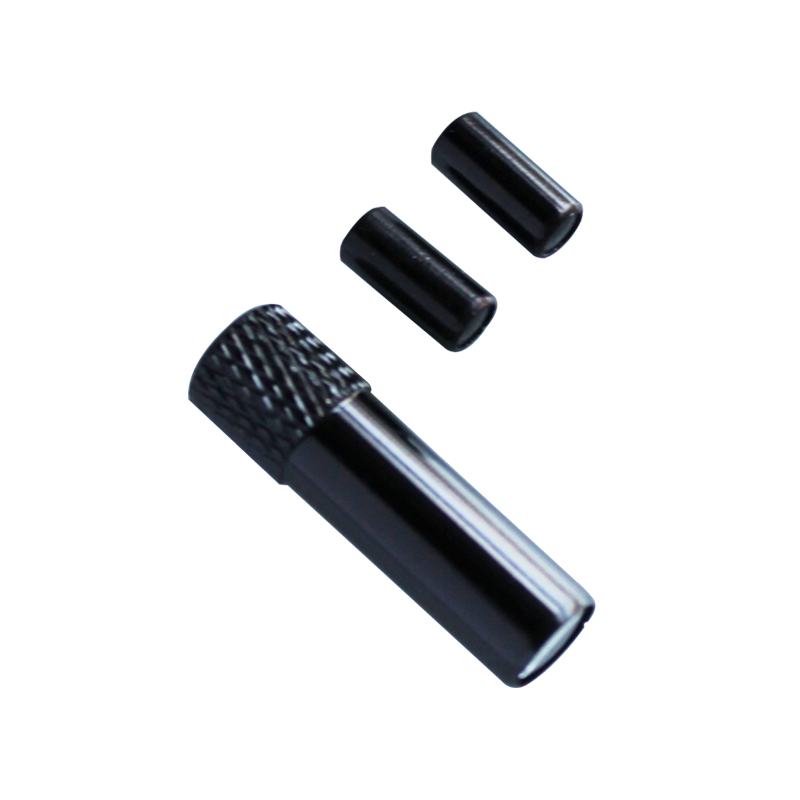

    Focus mirror (Lens) is available for choose.

    Product Item: Threaded Fiber Optic Sensor
