Fiber Optic Bundle

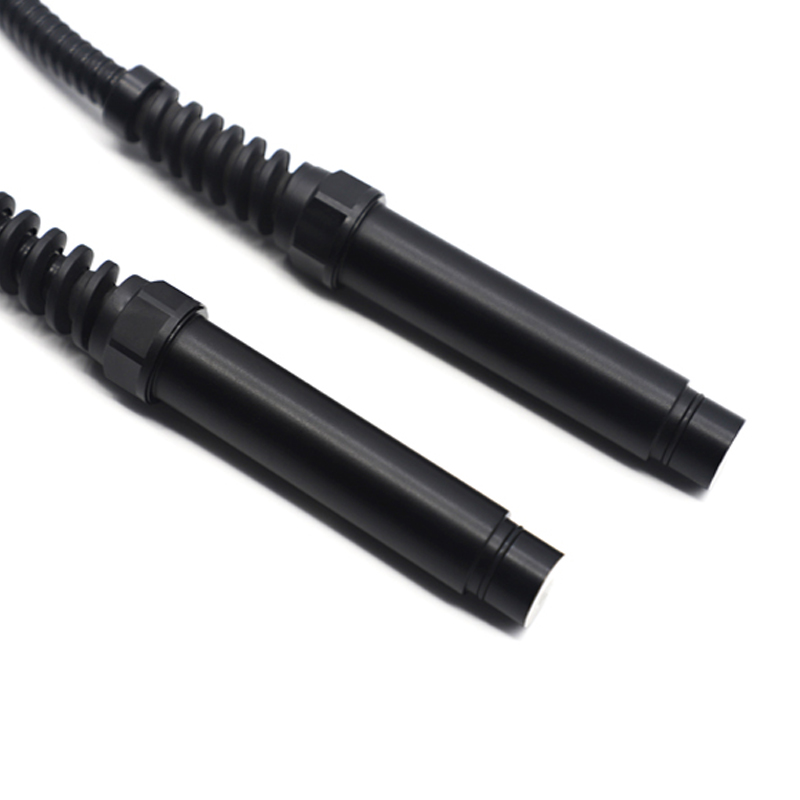

Dual Arm Fiber Optic Light Guides


    Tight bending radius for easy routing.

    A variety of standard sizes in dual and quad configurations.

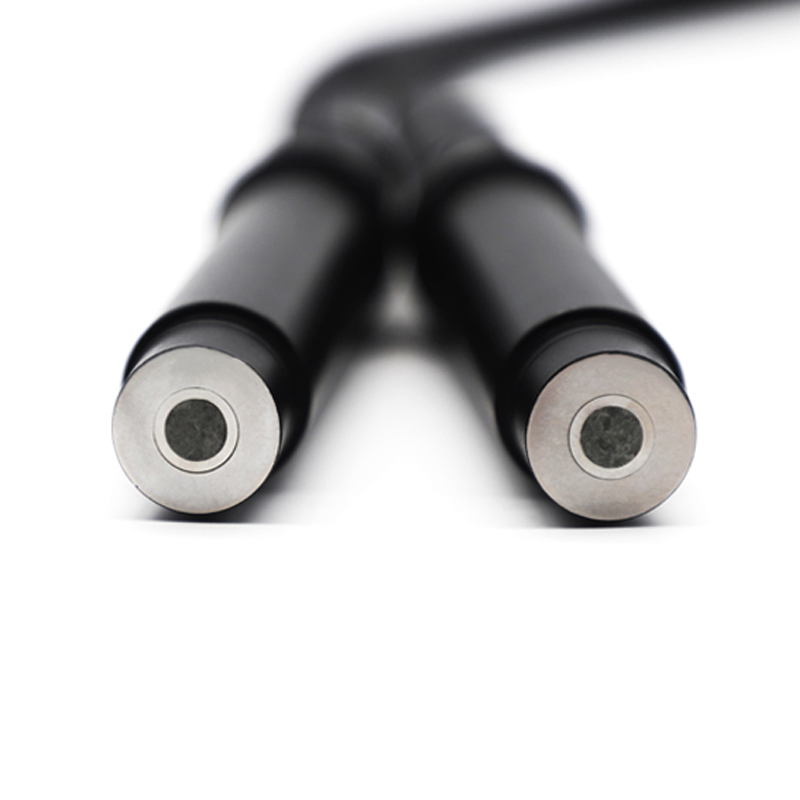

    The two exit ports provide illumination from different directions.

    Custom configurations are available. Lead time is required.


Inquire Download
  • Specifications
  • Application description
  • Basic Parameters

    Product item: Dual Arm Fiber Optic Light Guide


    Model Core Dia. Fiber material Length Tubes Spectral range
    GOFC-S3H-1000-F2H 3mm GOF 1000mm Flexible SUS 400 ~ 1400nm
    SOFC-S5H-1000-F2 5mm Silica fiber 1000mm Flexible SUS 190 ~ 1100nm
    POFC-S7H-1000-F2 7mm PMMA 1000mm Flexible SUS 380 ~ 780nm
    GOFC-S7H-1000-F2 7mm GOF 1000mm Flexible SUS 400 ~ 1400nm
    GOFC-S7.8V-500-IB2 7.8mm GOF 500mm Gooseneck 400 ~ 1400nm
    POFC-S8V-500-IT2 8mm PMMA 500mm Gooseneck 380 ~ 780nm
    GOFC-S8V-500-IT2 8mm GOF 500mm Gooseneck 400 ~ 140nm
    POFC-S8V-500-IT2L 8mm PMMA 500mm Gooseneck 380 ~ 780nm
    GOFC-S8V-500-IT2L 8mm GOF 500mm Gooseneck 400 ~ 1400nm
    POFC-S8H-1640-FR2 8mm PMMA 1640mm Flexible + Rigid 380 ~ 780nm
    GOFC-S8H-1640-FR2 8mm GOF 1640mm Flexible + Rigid 400 ~ 1400nm


    Other dimensions can be customized.


    GOFC series Compatiable with HECHO Fiber Optic Illuminators: LED light source: S3000/S5000; Halogen light source: H-100/H-150/B5100/B5200

    POFC series Compatiable with Hech


    We also supply Single Flexible Light Guide, welcome to view more.


    Product item: Dual Arm Fiber Optic Light Guide


    The dual-pipe Optical Fiber Light Guide has two exit ports that provide high uniformity fiber illumination from different directions.


    According to the actual needs of different fiber materials and protection tube. In the small space is fixed and need to move freely, you can directly use the stereotypes metal pipe or front end tube tube back-end hose mode.


    OEM and ODM services are available upon request.


    Optical fiber beam of the internal light guide fiber material can be evenly arranged, semi-circular distribution, concentric distribution and so on.


    Dual arm optical fiber bundle can be used in industrial automation, medical, optical and other industries. Such as microscopic lighting, polarized light therapy instrument, machine vision lighting and so on.

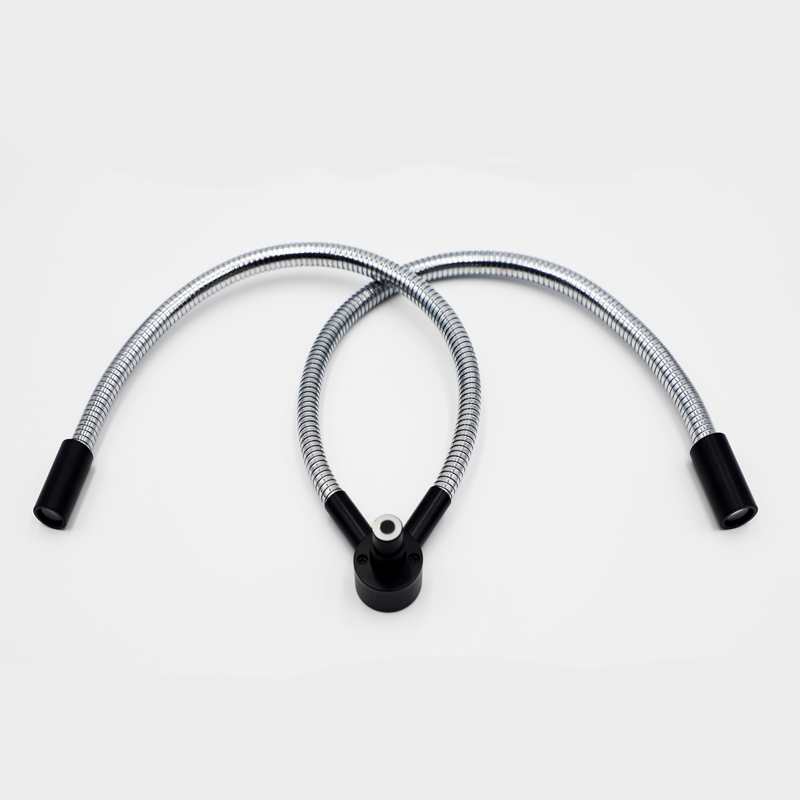

    Gooseneck Light Guide





    Product item: Dual Arm Fiber Optic Light Guide


    Plastic Fiber Light Guide

    Glass Fiber Bundles
