PRODUCTS DETAILS
Fiber Optic Sensor

Cylindrical Fiber Optic Sensor


    The screws can be used to secure the exterior

    High transmission rate of imported plastic optical fibers

    OEM & ODM service is available.


Inquire Download
  • Specifications
  • Application description
  • Basic Parameters

    Product Item: Cylindrical Fiber Optic Sensor


    Type
    Appearance

    Minimum bend

    Radius

    Detection distance

    mm

    Axis diameter

    mm

    Length
    Temperature
    Model

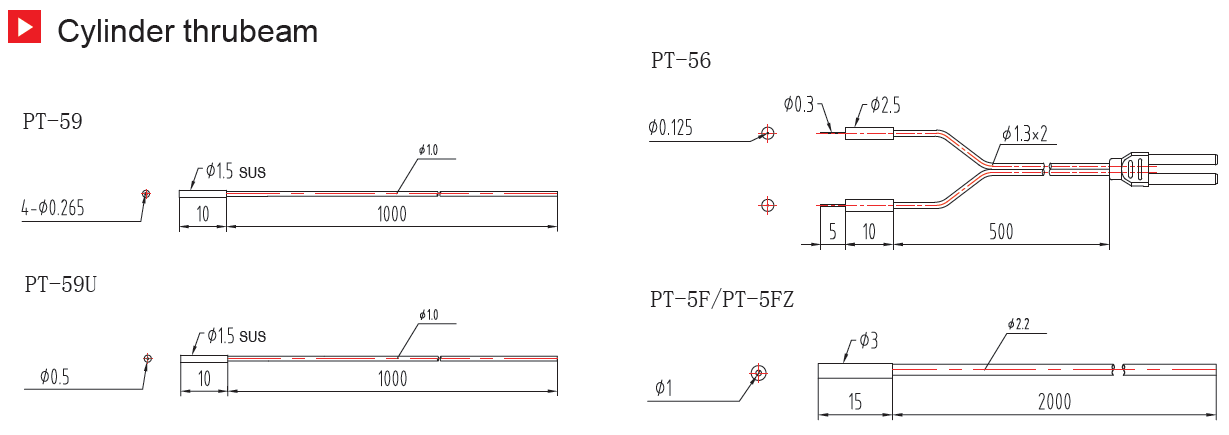

    Thrubeam Fiber Optic Sensor
    Φ1.5

    R4
    230
    0.265*4
    1m
    -40 +70℃
    PT-59
    Φ1.5

    R2
    140
    0.5
    1m
    -40 +70℃
    PT-59U
    Φ2.5

    R10
    45
    0.125
    50cm
    -40 +70℃

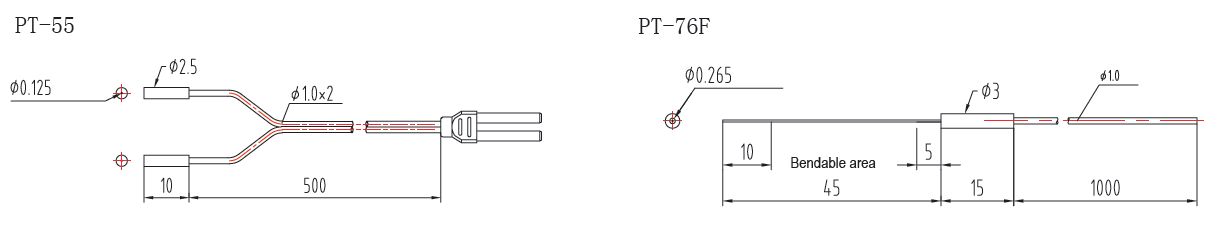

    PT-55
    Φ2.5

    R10
    13
    0.125
    50cm
    -40 +70℃
    PT-56
    Φ3

    R25
    1100
    1.0
    2m
    -40 +70℃
    PT-5F
    Φ3

    R2
    880
    1.0
    2m
    -40至+70℃
    PT-5FZ
    Φ3

    R10
    85
    0.265
    1m
    -40至+70℃
    PT-76F


    Type
    Appearance

    Minimum bend

    Radius

    Detection distance

    mm

    Length
    Temperature
    Model

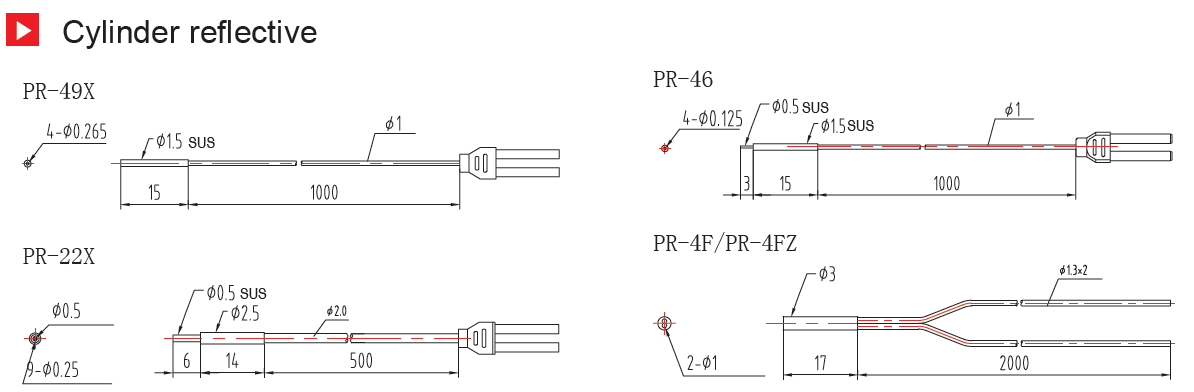

    Reflection Fiber Optic Sensor
    Φ1.5

    R4
    32
    1m
    -40 +70℃
    PR-49X
    Φ1.5

    R10
    4.8
    1m
    -40 +70℃
    PR-46
    Φ2.5

    R25
    23
    50cm
    -40 +70℃
    PR-22X
    Φ3

    R25
    300
    2m
    -40 +70℃
    PR-4F
    Φ3

    R2
    190
    2m
    -40 +70℃
    PR-4FZ
    Φ3

    R4
    63
    2m
    -40 +70℃
    PR-48
    Φ3

    R2
    40
    1m
    -40 +70℃
    PR-48U
    Φ3

    R25
    180
    50cm
    -40 +70℃

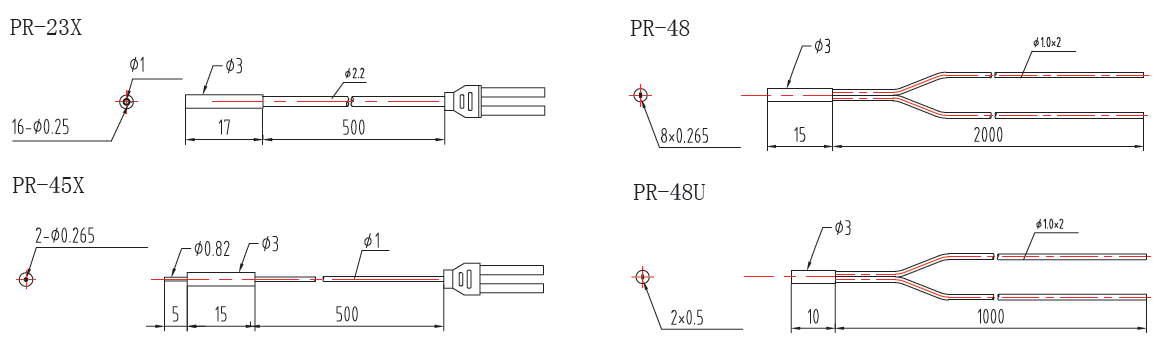

    PR-23X
    Φ3

    R4
    18
    50cm
    -40 +70℃
    PR-45X

    Product Item: Cylindrical Fiber Optic Sensor

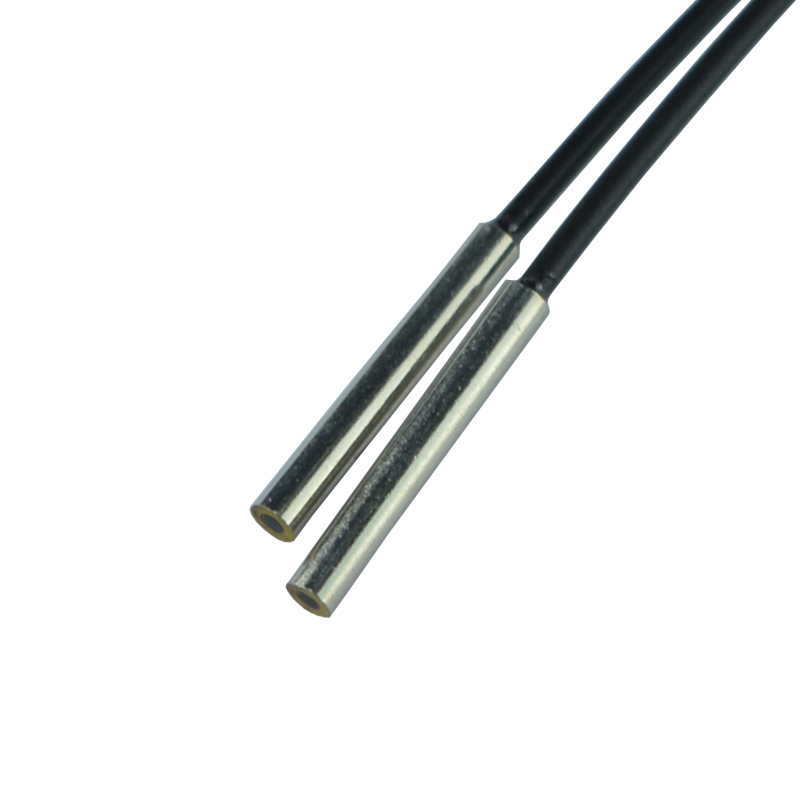

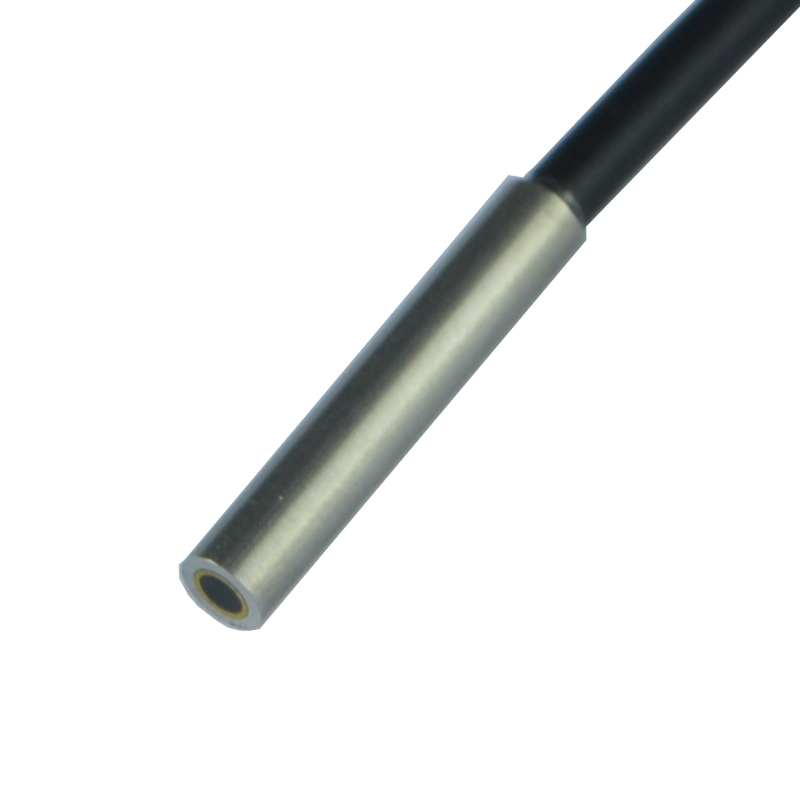

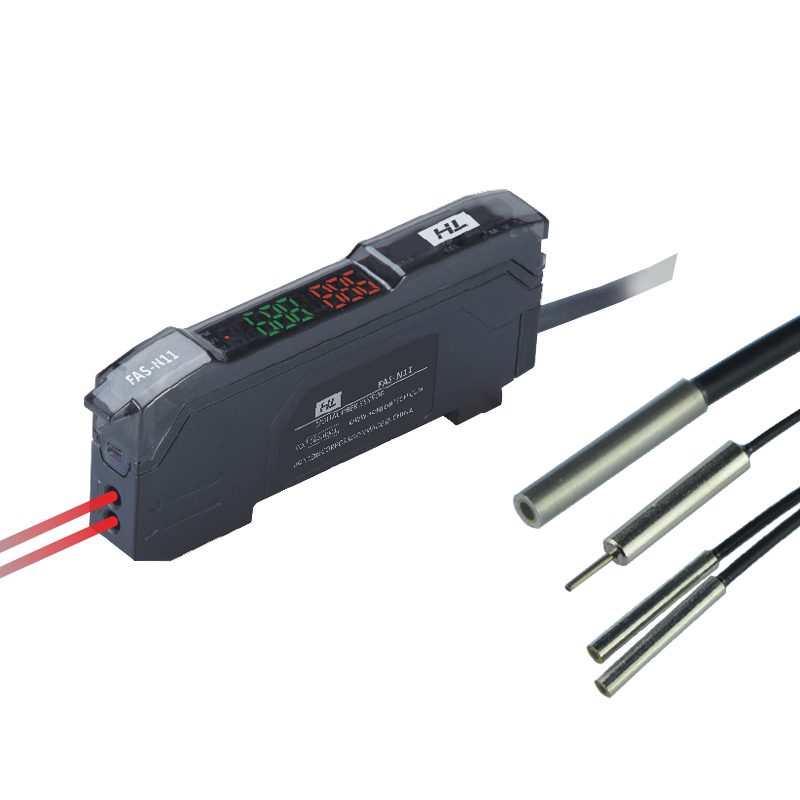

    Cylindrical connection Fiber Optic Sensors using high transmission rate of imported plastic optical fiber, can be fixed with screws outside, can be used for space limited and high positioning requirements of the occasion. Can replace the KEYENCE / OMRON / AUTONICS equivalent fiber optic sensor. Provide OEM & ODM services.


    Fiber Optic Sensor Fiber Optic Sensor

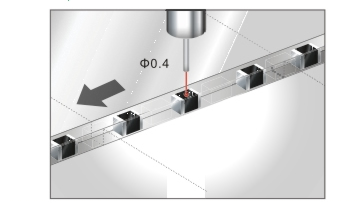

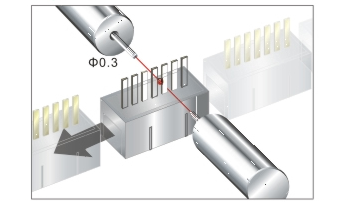

    New fiber core, Φ0.175mm, can detect tiny IC chip.                        superfine fiber core Φ0.125mm detecting small IC chip pins.

    Product Item: Cylindrical Fiber Optic Sensor


    Fiber Optic SensorsFiber Optic SensorFiber Optic SensorFiber Optic Sensor
